1-Spool Hydraulic Valve | SD14 Model | Factory Direct & Customizable

วิธีการควบคุม:ด้วยตนเอง

สปูล:1 สปูล

อัตราการไหลที่กำหนด:120 ลิตร/นาที (31.7 แกลลอนสหรัฐ/นาที)

แรงดันสูงสุด:305 บาร์ (4,400 psi)

พอร์ตทางเข้า:ขนาด G3/4

พอร์ตทางออก:ขนาด G3/4

ขนาดพอร์ต:ขนาด G3/4

แบรนด์:BXHS

ประเภทสินค้า:วาล์วควบคุมทิศทางแบบโมโนบล็อก

ซีรี่ส์ผลิตภัณฑ์:ซีรีส์ SD14 วาล์วควบคุมทิศทางแบบโมโนบล็อก

ขนาดบรรจุภัณฑ์:15*26*15

น้ำหนักรวม:6.80 kg

สถานะสินค้า: มีสินค้าในสต็อก

1075 ผู้เข้าชมที่กำลังมองหาผลิตภัณฑ์นี้

1-Spool Hydraulic Valve | SD14 Model | Factory Direct & Customizable

1-Spool Hydraulic Valve | SD14 Model | Factory Direct & Customizable

1-Spool Hydraulic Valve | SD14 Model | Factory Direct & Customizable drawing image

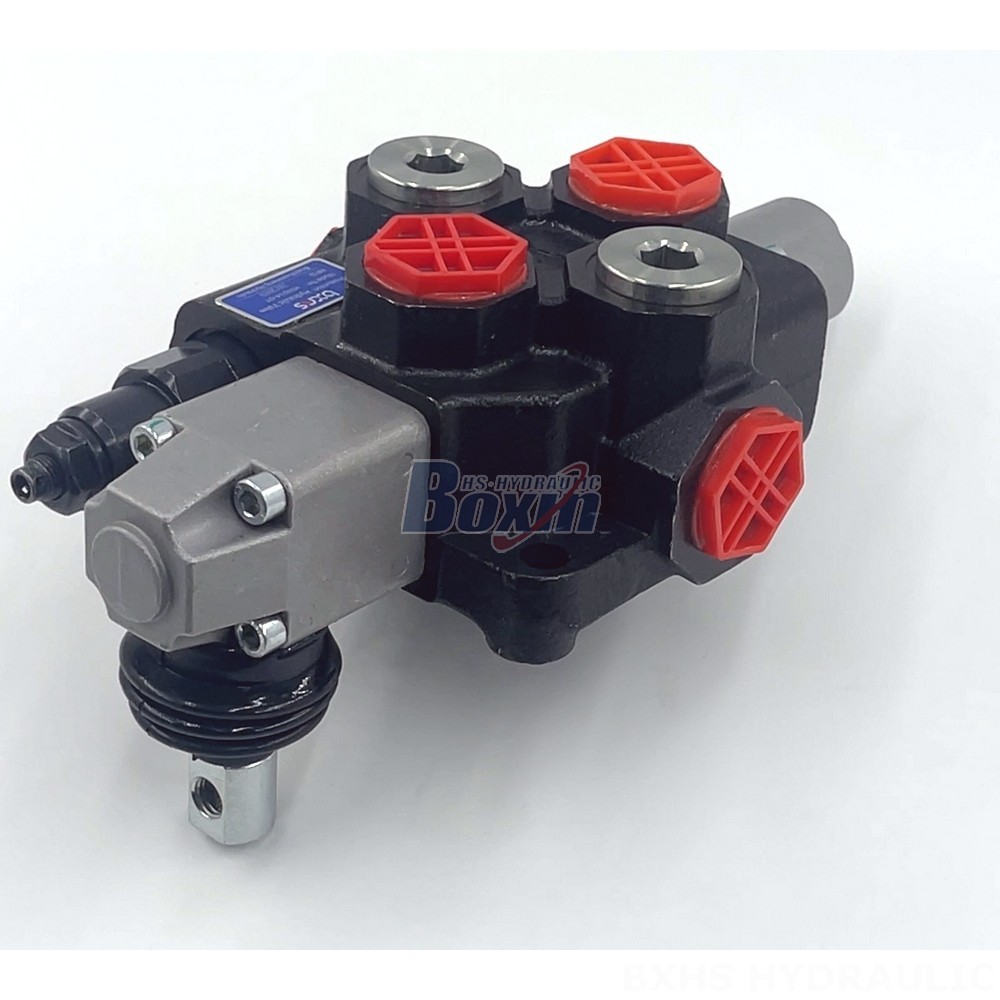

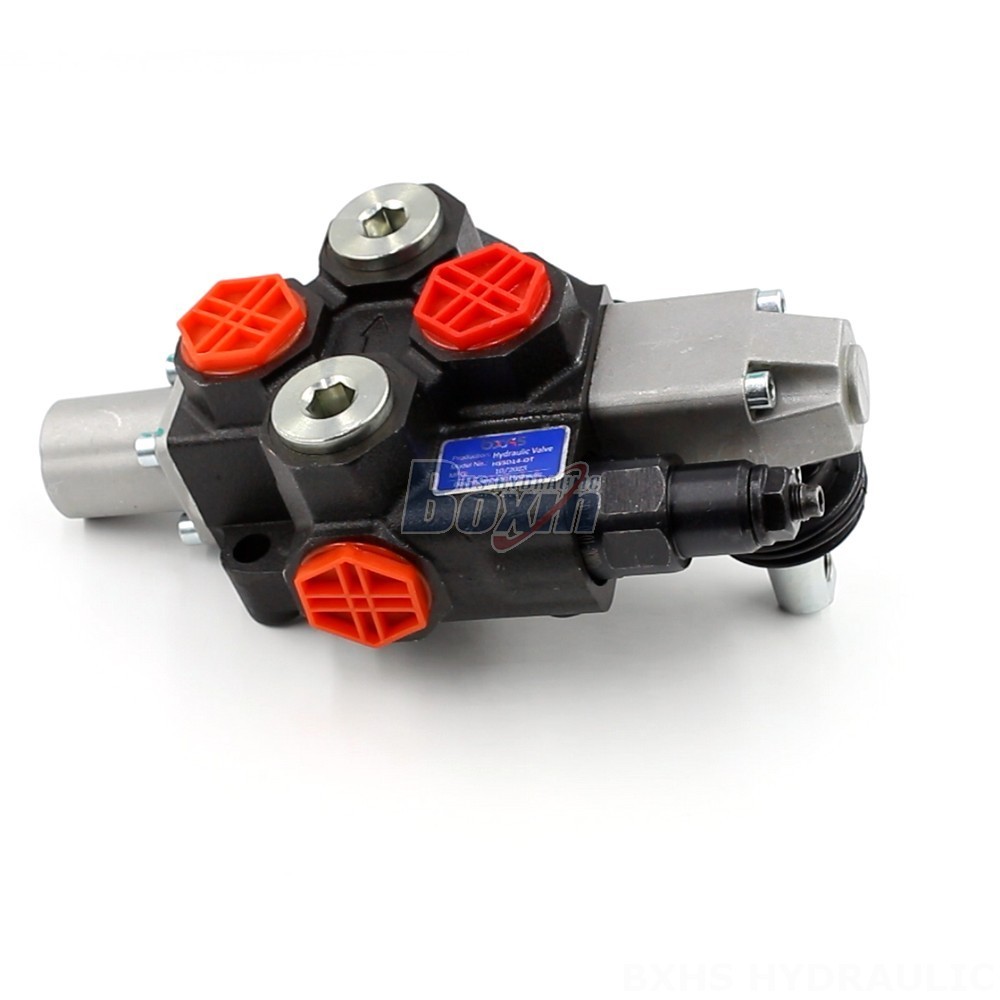

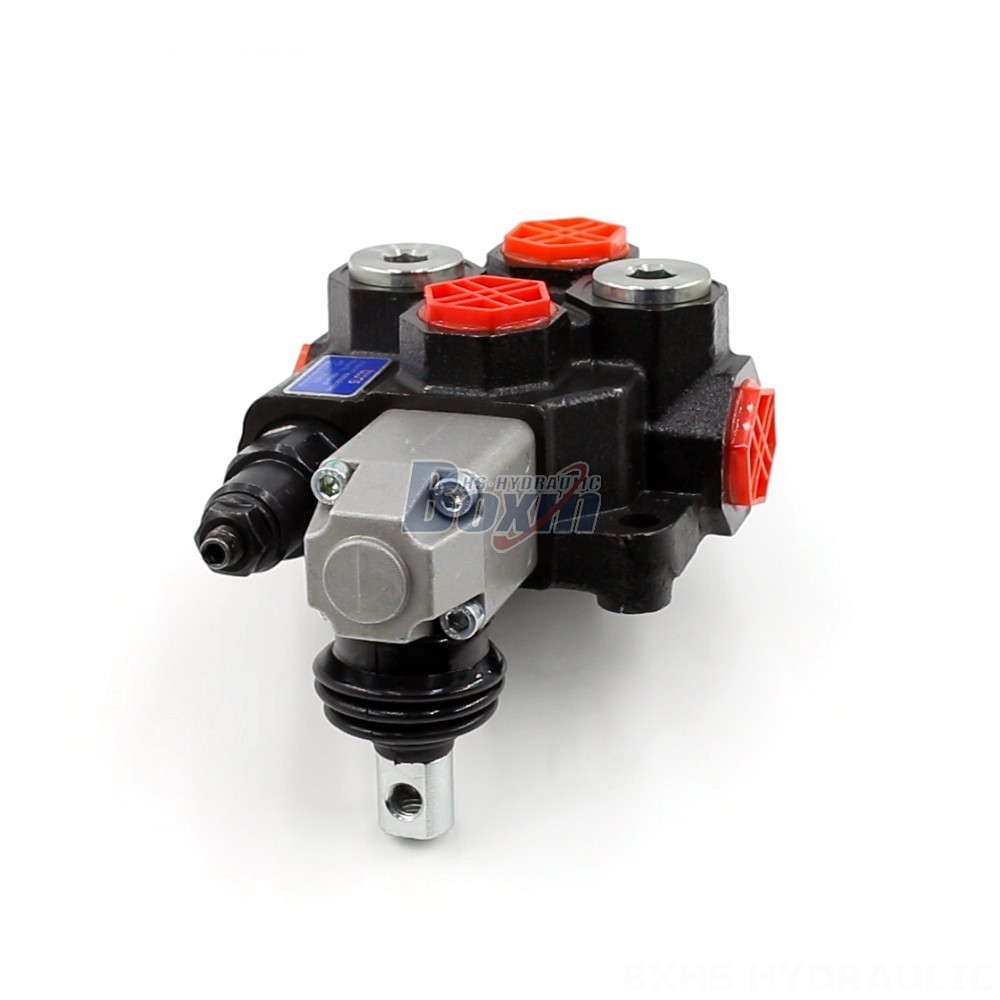

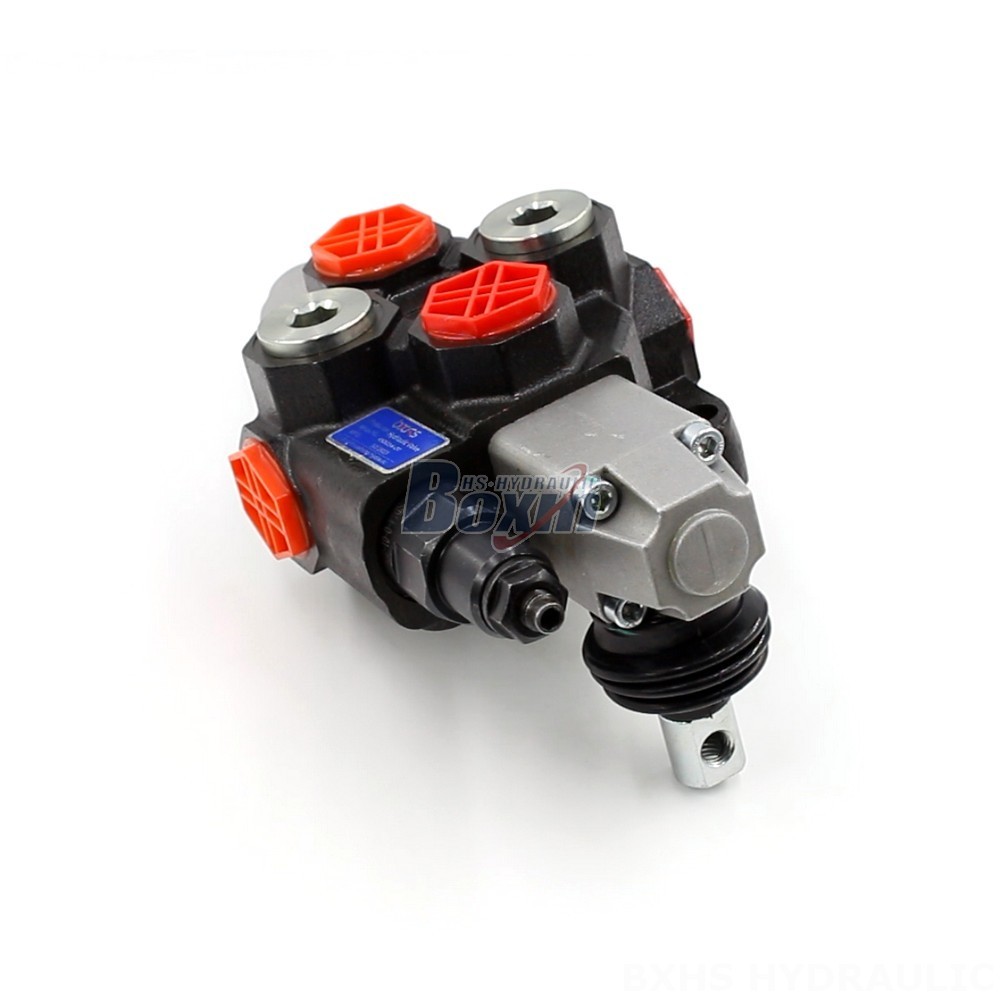

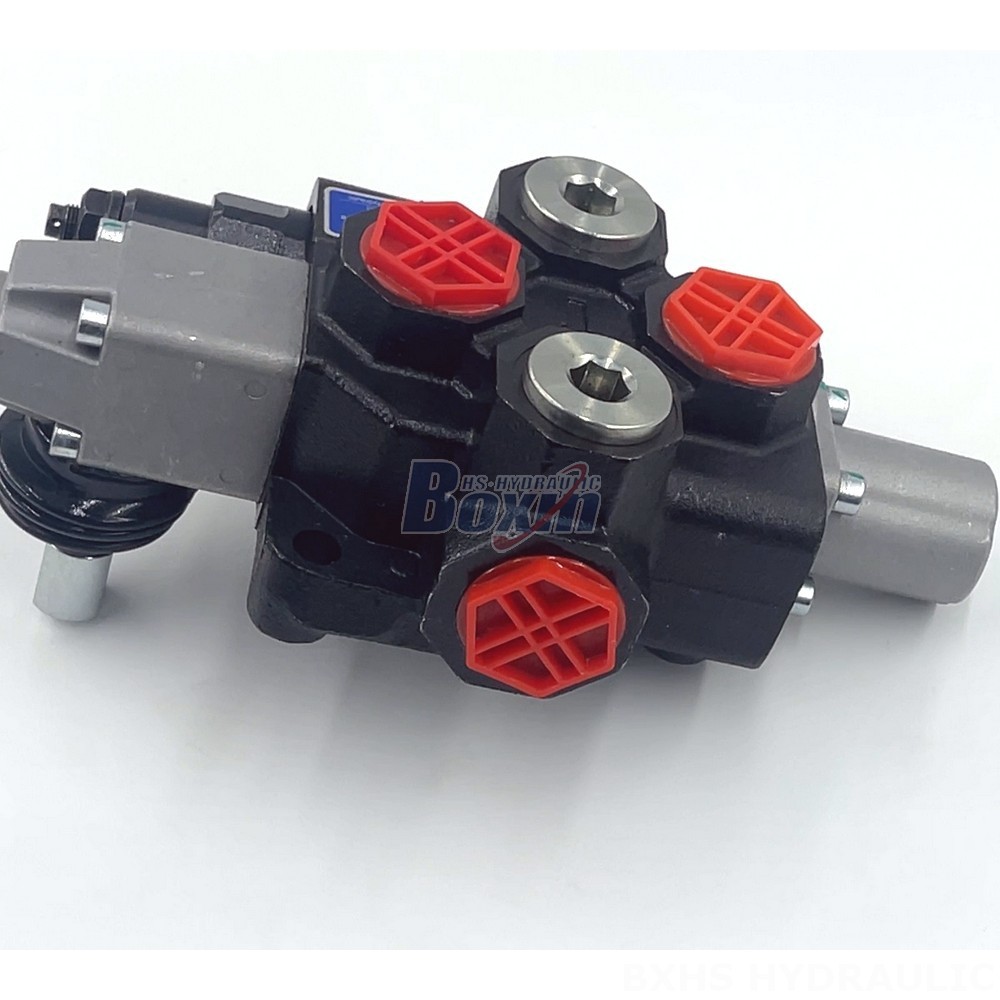

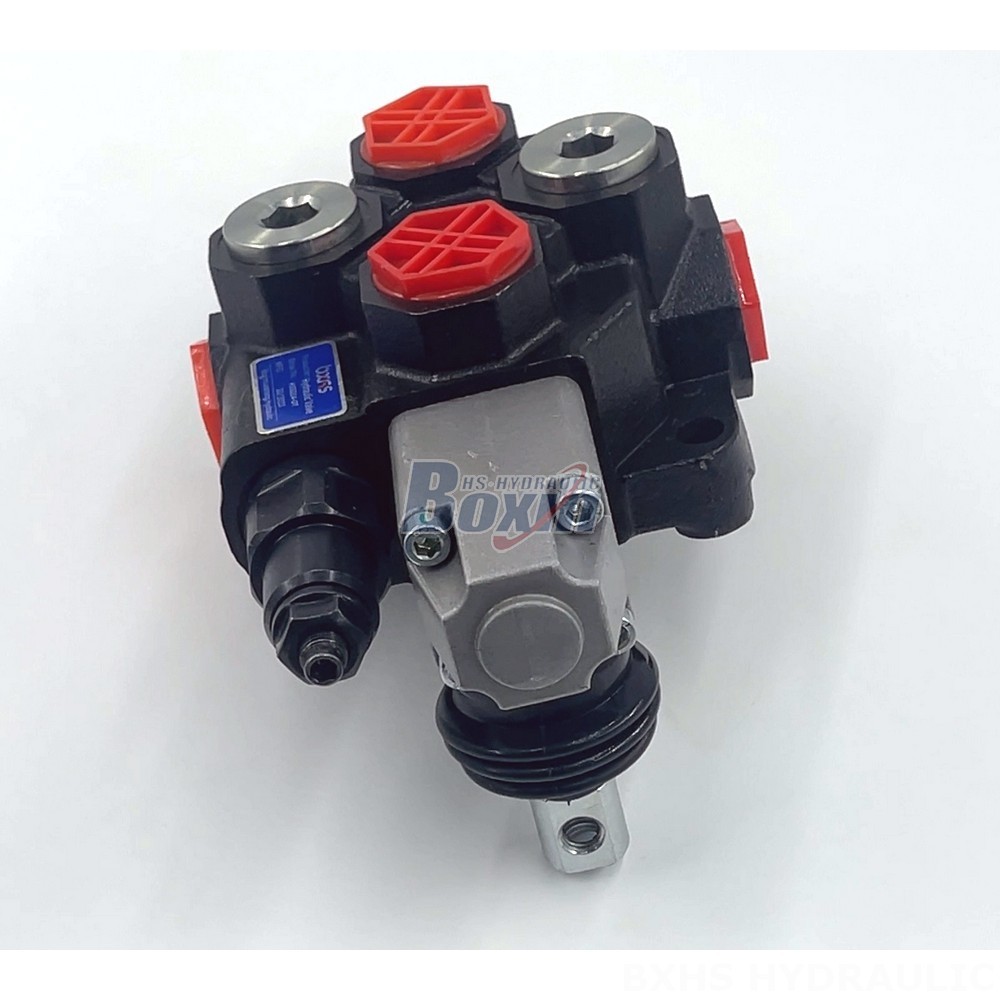

The SD14 Series Hydraulic Sectional Valve is a high-performance, 1-spool monoblock valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. Featuring manual control and a rated flow of 120 L/min (31.7 US gpm), this valve is ideal for telehandlers, forklifts, excavators, loaders, and other mobile equipment.

ซีรีส์ SD14 วาล์วควบคุมทิศทางแบบโมโนบล็อก พารามิเตอร์
วิธีการควบคุม ด้วยตนเอง, ลม, ไฮดรอลิก
สปูล 1 สปูล
ช่วงอุณหภูมิโดยรอบ -40°C ถึง +60°C (-40°F ถึง +140°F)
ประเภทโครงสร้าง วาล์วแบบโมโนบล็อก
ส่วน 1 ส่วน
ช่วงความหนืดในการทำงาน 15 - 75 มม²/วินาที (15 cSt ถึง 75 cSt)
อัตราการไหลที่กำหนด 120 ลิตร/นาที (31.7 แกลลอนสหรัฐ/นาที)
แรงดันสูงสุด 315 บาร์ (4,600 psi)
พอร์ตทางเข้า ขนาด G3/4
พอร์ตทางออก ขนาด G3/4
ขนาดพอร์ต ขนาด G3/4

This SD14 Series Hydraulic Sectional Valve is a robust, reliable, and customizable solution for your hydraulic system needs. It features a monoblock construction for increased strength and durability. With a rated flow of 120 L/min (31.7 US gpm) and a maximum pressure of 315 bar (4600 psi), this valve delivers the power and performance you need for demanding applications. This valve is designed for a wide range of operating temperatures (-40°C to +60°C) and viscosities (15 - 75 mm²/s), ensuring reliable operation in various environments. Available directly from our factory, you can customize this valve to meet your specific requirements. Our SD14 Series Hydraulic Sectional Valve is suitable for a wide range of applications, including: Telehandlers, Forklifts, All Terrain Cranes, Stackers, Aerial Platforms, Motor Graders, Midi-Excavators, Mini-Excavators, Skid Steer Loaders, and Compact Wheel Loaders. Contact us today to discuss your specific needs and get a customized solution.
