การผลิตและการจัดส่ง
ระยะเวลารอการผลิต 15-30 วัน

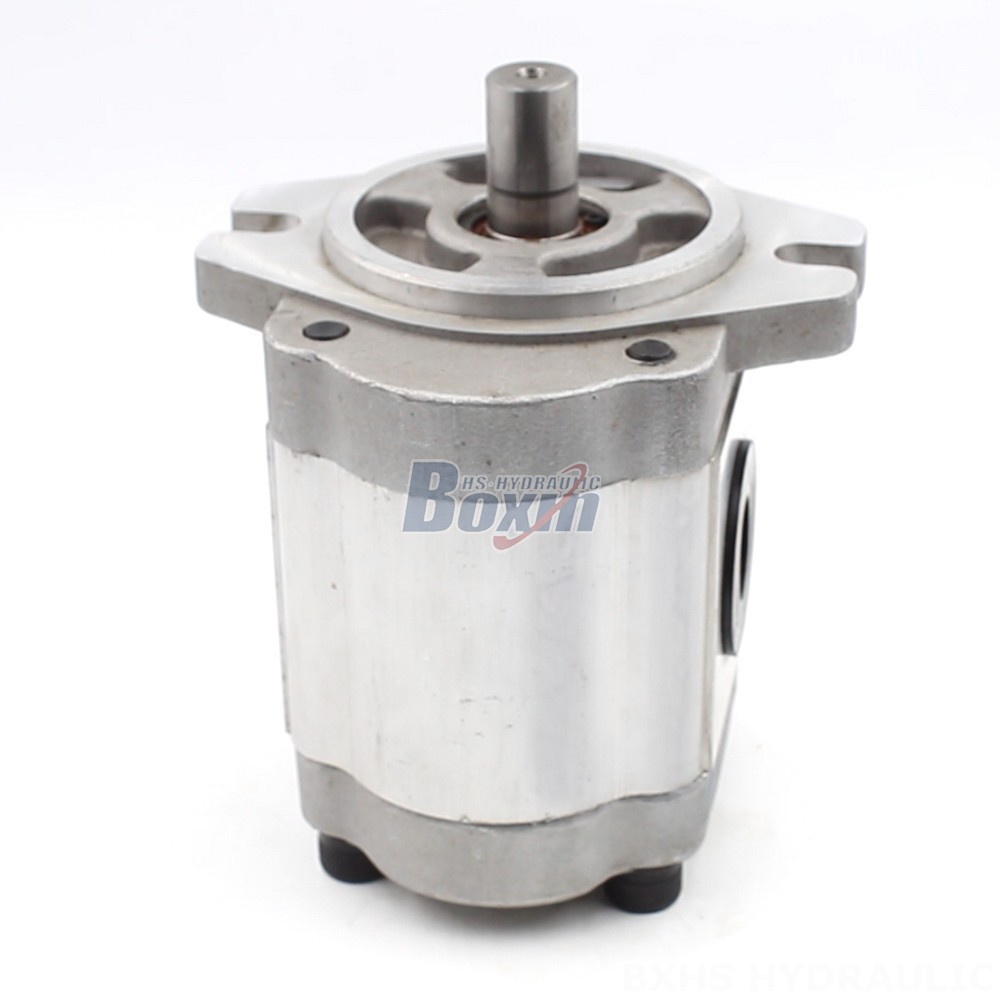

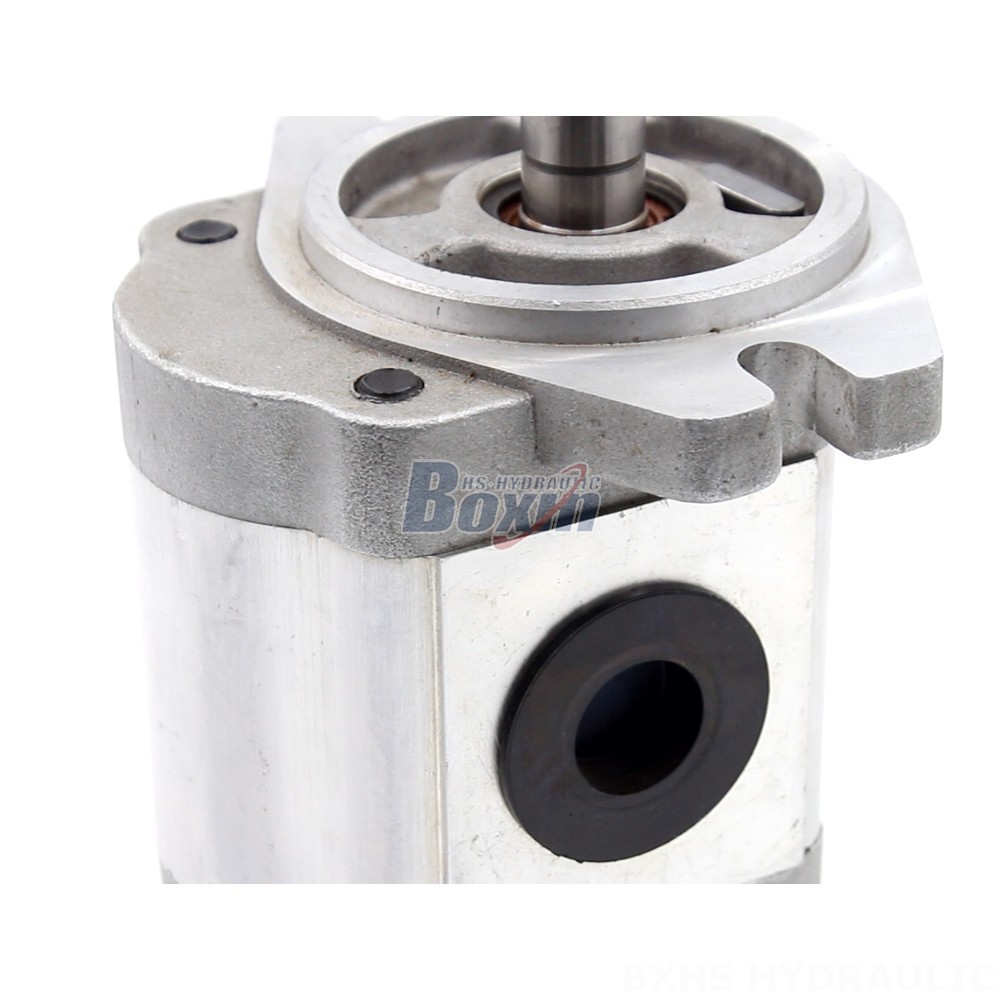

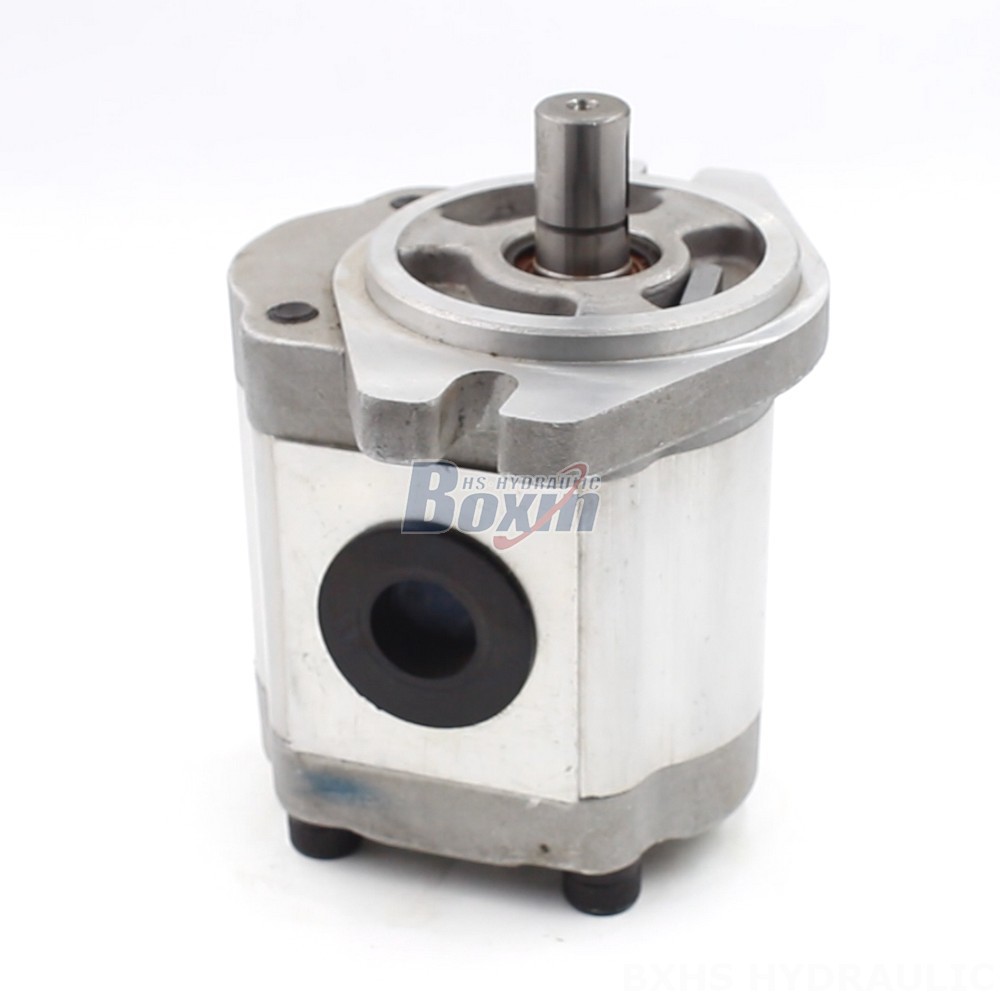

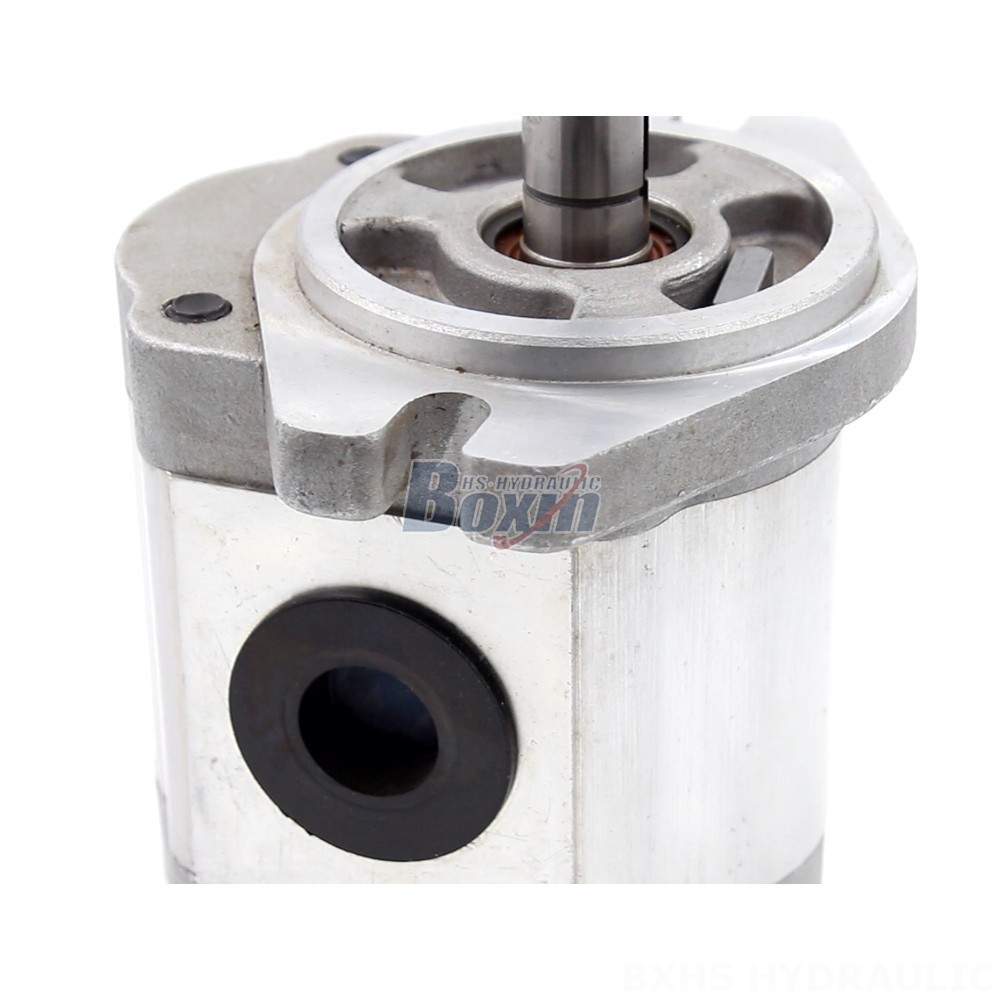

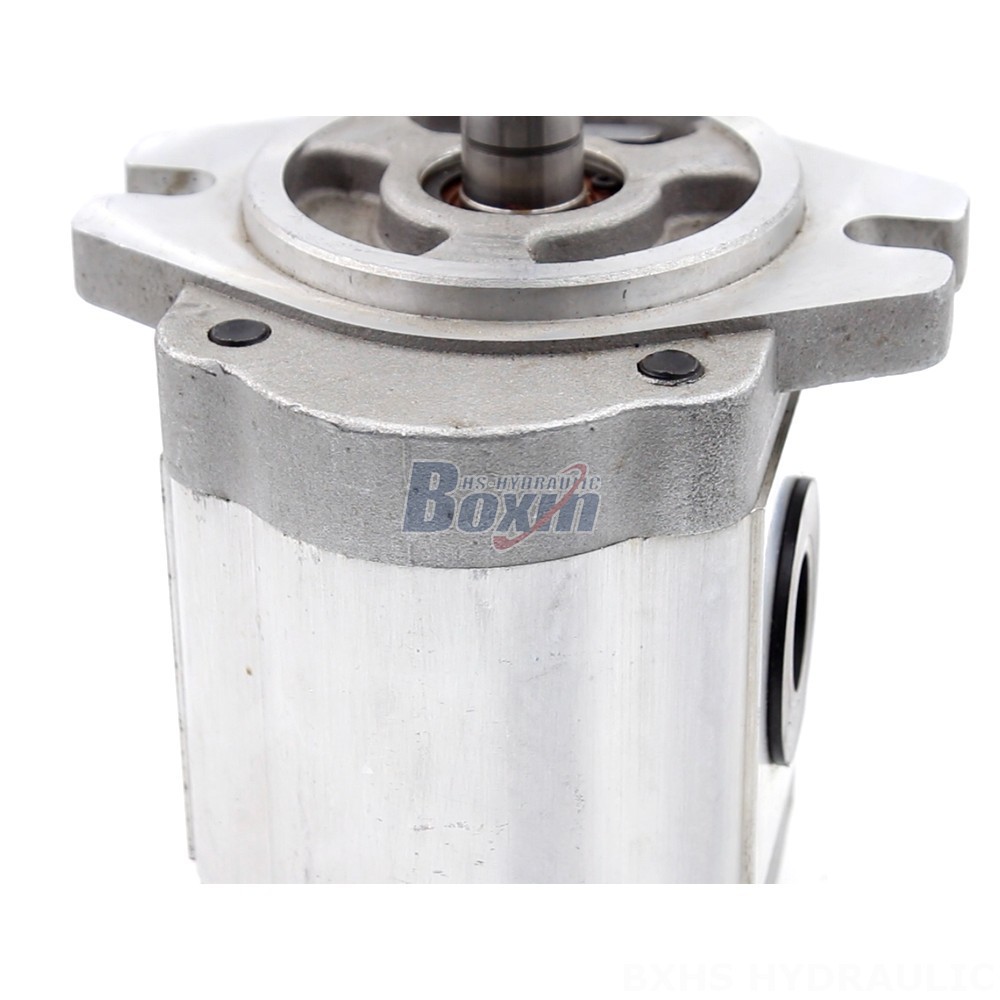

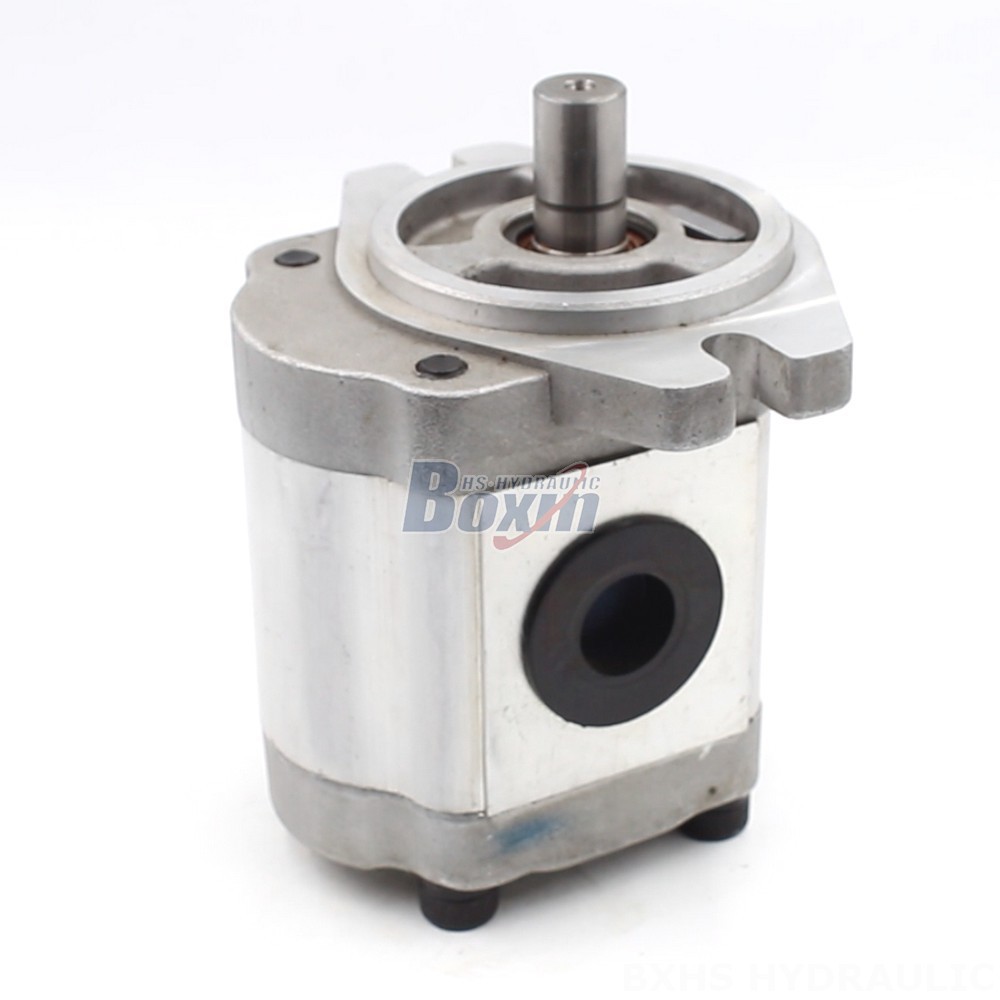

This 16 cc/rev hydraulic gear pump is designed for high-performance applications in construction, agriculture, and material handling. It features a durable aluminum construction, high pressure rating, and customizable options to meet your specific needs. The pump is suitable for various equipment types, including forklifts, telehandlers, skid steer loaders, and more.
| ซีรีส์ CBHS-FL3 ปั๊มเฟืองไฮดรอลิก พารามิเตอร์ | |
|---|---|
| ปริมาตรกระจัด | 10 ซีซี/รอบ, 4 ซีซี/รอบ, 20 ซีซี/รอบ, 16 ซีซี/รอบ, 14 ซีซี/รอบ, 6 ซีซี/รอบ |
| แรงดันที่กำหนด | แรงดัน 20 MPa (2900 psi) |
| แรงดันสูงสุด | แรงดัน 25 MPa (3625 psi) |
| ความเร็วที่กำหนด | ความเร็ว 2000 รอบต่อนาที |
| ความเร็วสูงสุด | ความเร็ว 3000 รอบต่อนาที |
| ทิศทางการหมุน | Left (counter-clockwise), Right (clockwise) |
| วัสดุ | อลูมิเนียม |
| โครงสร้าง | ปั๊มเกียร์ภายนอก |
| เวอร์ชันหน้าแปลน | หน้าแปลนรูปไข่ |
| ประเภทเพลา | Rectangle Spline, Involute Spline, P: กุญแจเรียบ |
This 16 cc/rev hydraulic gear pump is a heavy-duty, high-performance solution for various applications. It boasts a 20 MPa (2900 psi) rated pressure and a 2000 r/min rated speed, with a maximum speed of 3000 r/min. This pump features a robust internal gear design, constructed from aluminum for long-lasting durability. Its A-Oval flange and plain key shaft provide flexible mounting options. The CBHS-FL3 Series pump is specifically designed for use in material handling, construction and earth moving, agriculture, and industrial vehicles. This makes it a versatile option for a wide range of equipment types, including forklifts, telehandlers, skid steer loaders, compact wheel loaders, mini- and midi- excavators, tractors and front-end loaders, harvesters, balers, and sprayers.
