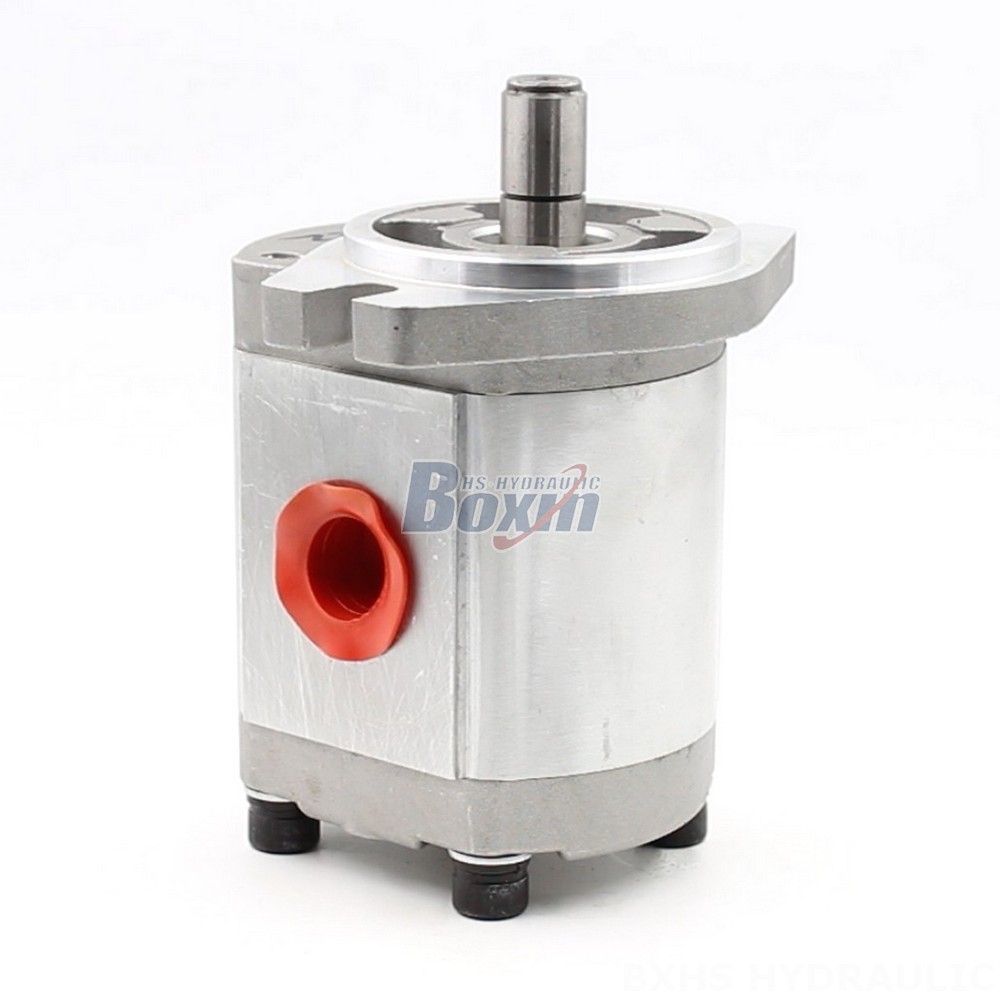

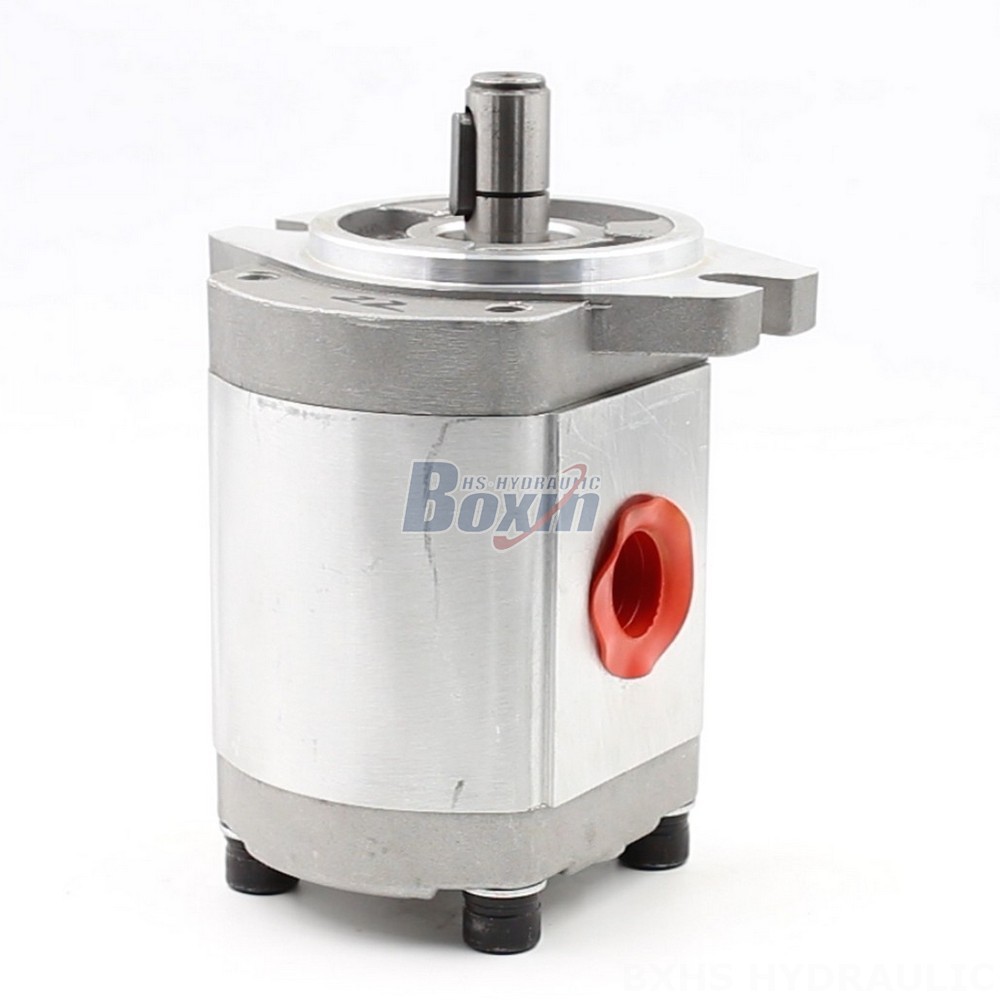

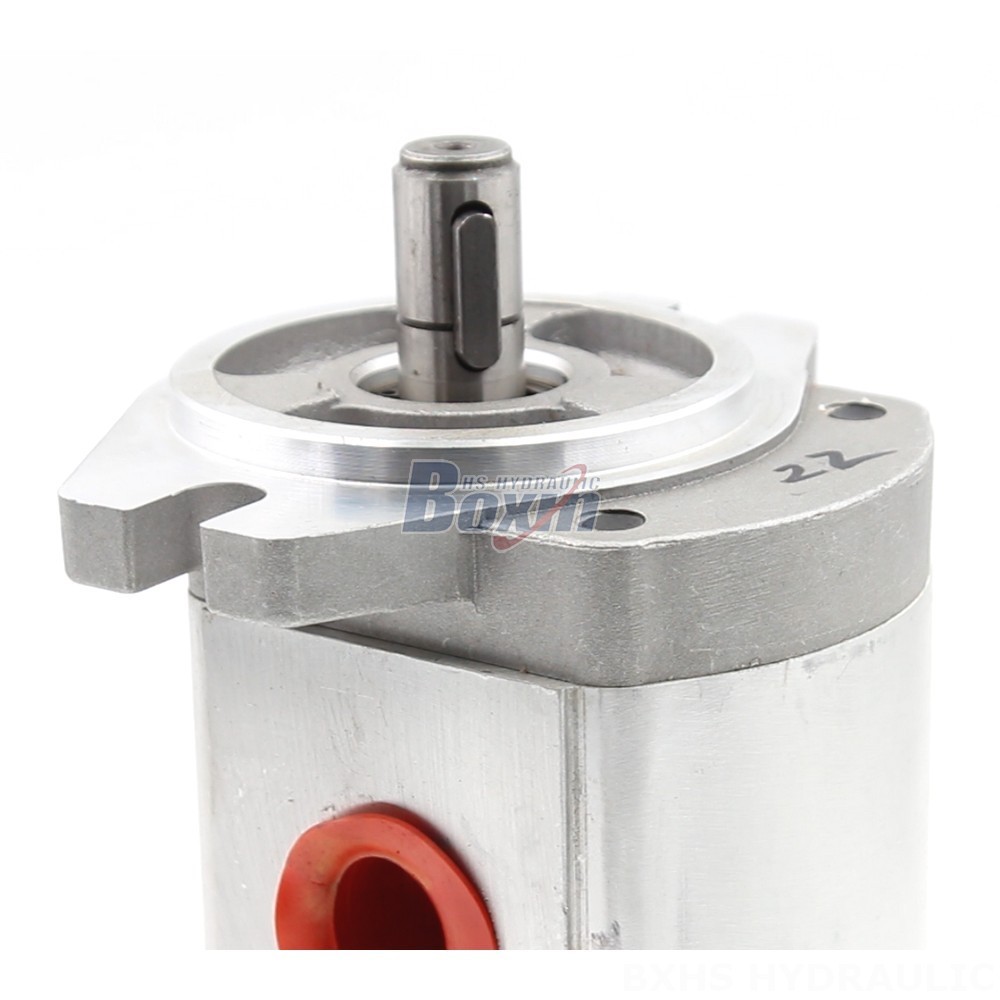

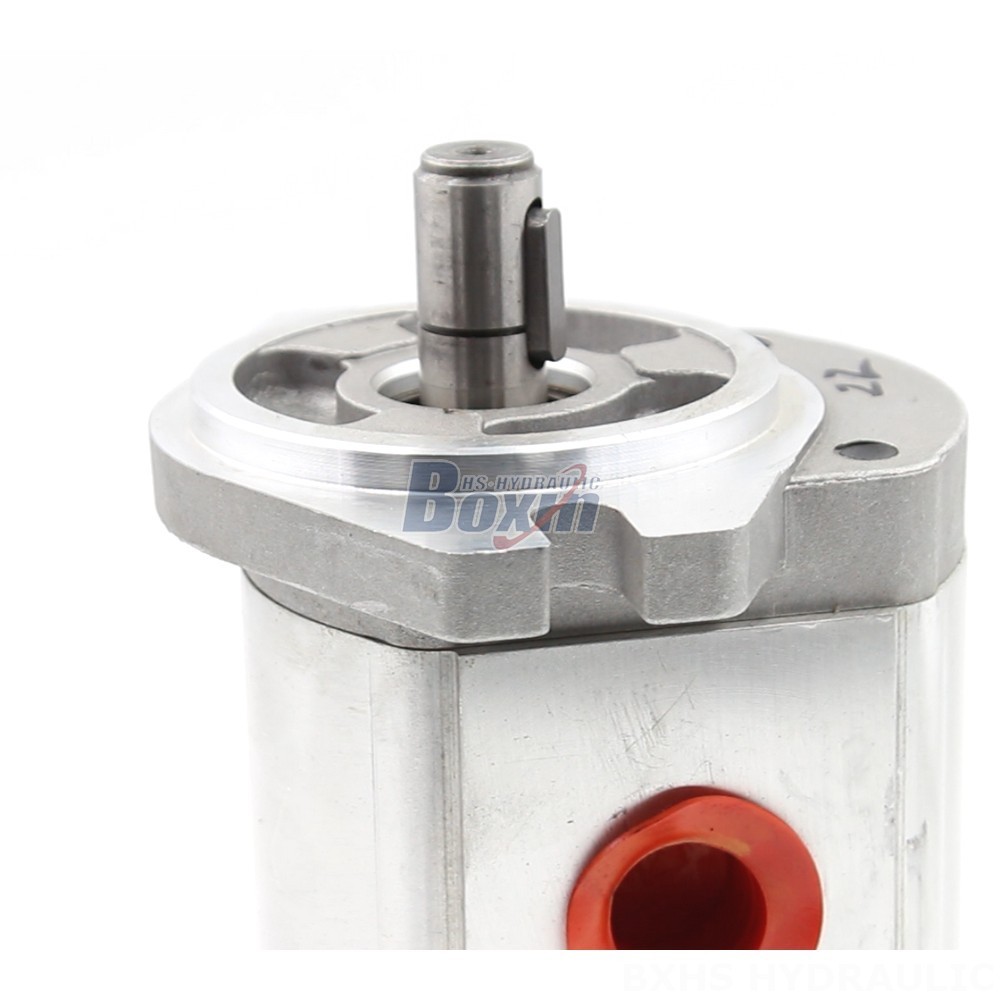

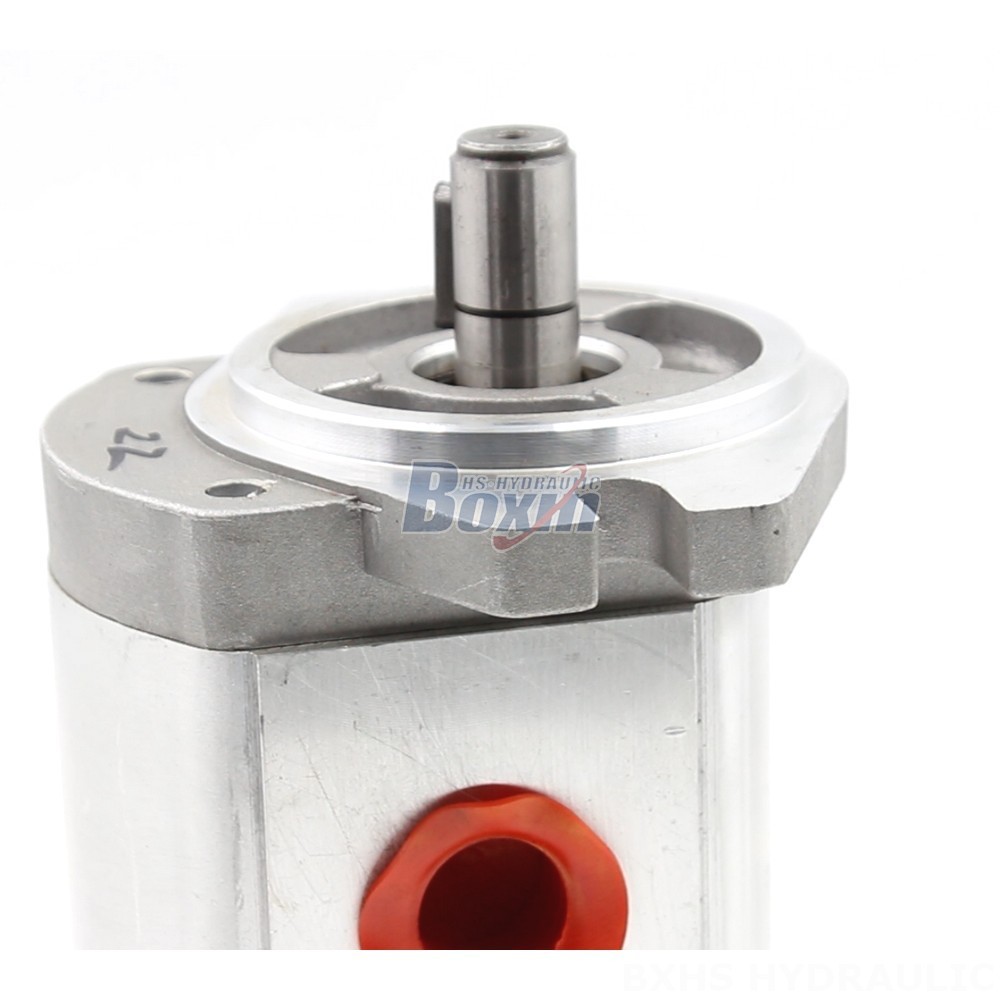

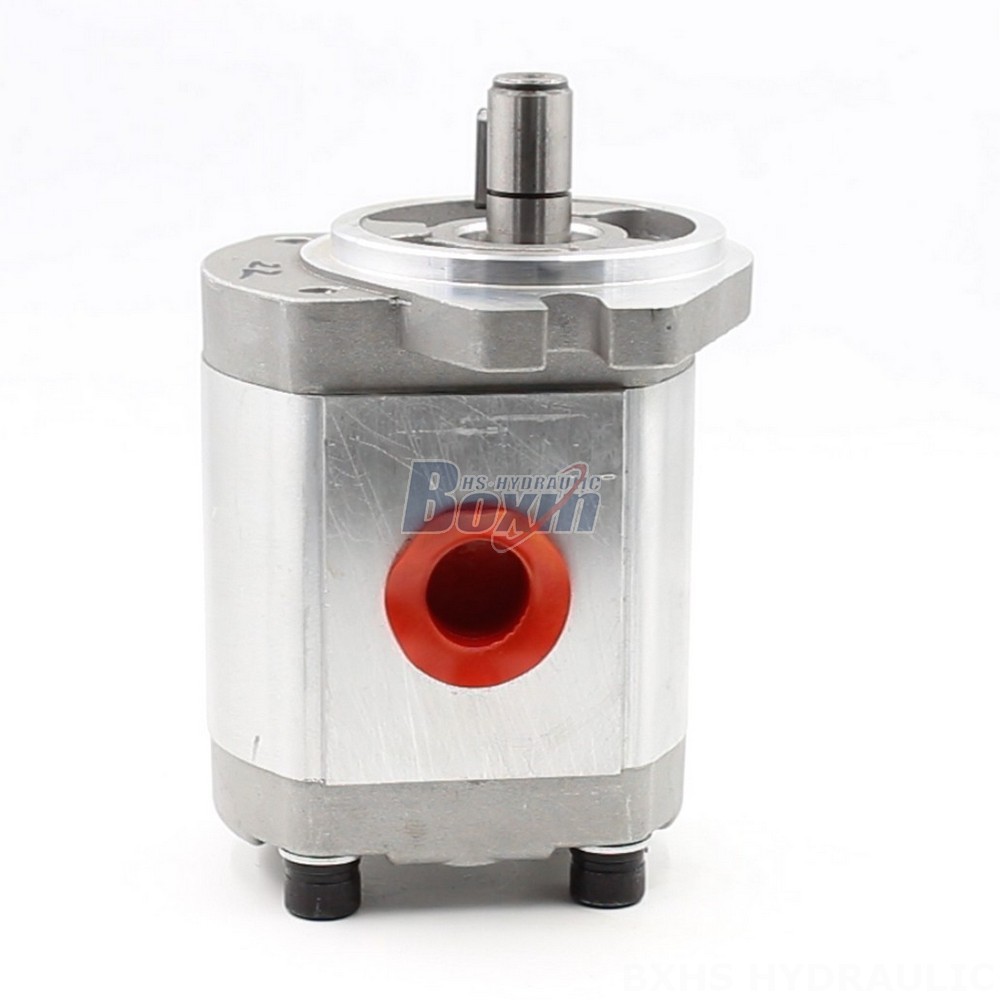

CBHS-FL304 4 cc/rev Hydraulic Gear Pump: Buy Directly from the Manufacturer

ปริมาตรกระจัด:4 ซีซี/รอบ

แรงดันที่กำหนด:แรงดัน 20 MPa (2900 psi)

แรงดันสูงสุด:แรงดัน 25 MPa (3625 psi)

ความเร็วสูงสุด:ความเร็ว 3000 รอบต่อนาที

ทิศทางการหมุน:Right (clockwise)

แบรนด์:BXHS

ประเภทสินค้า:ปั๊มเฟืองไฮดรอลิก

ซีรี่ส์ผลิตภัณฑ์:ซีรีส์ CBHS-FL3 ปั๊มเฟืองไฮดรอลิก

ขนาดบรรจุภัณฑ์:20*30*20

น้ำหนักรวม:9.00 kg

สถานะสินค้า: มีสินค้าในสต็อก

1062 ผู้เข้าชมที่กำลังมองหาผลิตภัณฑ์นี้

CBHS-FL304 4 cc/rev Hydraulic Gear Pump: Buy Directly from the Manufacturer

CBHS-FL304 4 cc/rev Hydraulic Gear Pump: Buy Directly from the Manufacturer

CBHS-FL304 4 cc/rev Hydraulic Gear Pump: Buy Directly from the Manufacturer drawing image

The CBHS-FL304 4 cc/rev Hydraulic Gear Pump is a high-performance, durable, and reliable pump designed for various applications in construction, agriculture, industrial vehicles, and material handling. It features a 10 cc/rev displacement, 20 MPa (2900 psi) rated pressure, and 2000 r/min rated speed, making it ideal for demanding environments.

ซีรีส์ CBHS-FL3 ปั๊มเฟืองไฮดรอลิก พารามิเตอร์
ปริมาตรกระจัด 10 ซีซี/รอบ, 4 ซีซี/รอบ, 20 ซีซี/รอบ, 16 ซีซี/รอบ, 14 ซีซี/รอบ, 6 ซีซี/รอบ
แรงดันที่กำหนด แรงดัน 20 MPa (2900 psi)
แรงดันสูงสุด แรงดัน 25 MPa (3625 psi)
ความเร็วที่กำหนด ความเร็ว 2000 รอบต่อนาที
ความเร็วสูงสุด ความเร็ว 3000 รอบต่อนาที
ทิศทางการหมุน Left (counter-clockwise), Right (clockwise)
วัสดุ อลูมิเนียม
โครงสร้าง ปั๊มเกียร์ภายนอก
เวอร์ชันหน้าแปลน หน้าแปลนรูปไข่
ประเภทเพลา Rectangle Spline, Involute Spline, P: กุญแจเรียบ

The CBHS-FL304 4 cc/rev Hydraulic Gear Pump is a robust and efficient internal gear pump, manufactured with high-quality aluminum material. It features an A-Oval flange design and a plain key shaft, making it compatible with various machinery. With a displacement of 10 cc/rev, a rated pressure of 20 MPa (2900 psi), and a rated speed of 2000 r/min, this pump delivers exceptional performance in demanding applications such as telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors and front-end loaders, harvesters, and balers. The pump is also customizable to meet specific requirements. As a manufacturer, we provide manufacturing, OEM, private label, and customization services, along with global distribution network support.
