Factory Direct Supply P21A646JEAL20-25 64.6 cc/rev Hydraulic Gear Pump

ปริมาตรกระจัด:64.6 ซีซี/รอบ

แรงดันที่กำหนด:แรงดัน 16 MPa (2320 psi)

แรงดันสูงสุด:แรงดัน 17 MPa (2465 psi)

ความเร็วสูงสุด:ความเร็ว 2400 รอบต่อนาที

ทิศทางการหมุน:สองทิศทาง

แบรนด์:BXHS

ประเภทสินค้า:ปั๊มเฟืองไฮดรอลิก

ซีรี่ส์ผลิตภัณฑ์:ซีรีส์ P21 ปั๊มเฟืองไฮดรอลิก

ขนาดบรรจุภัณฑ์:45*25*18

น้ำหนักรวม:16.00 kg

สถานะสินค้า: มีสินค้าในสต็อก

180 ผู้เข้าชมที่กำลังมองหาผลิตภัณฑ์นี้

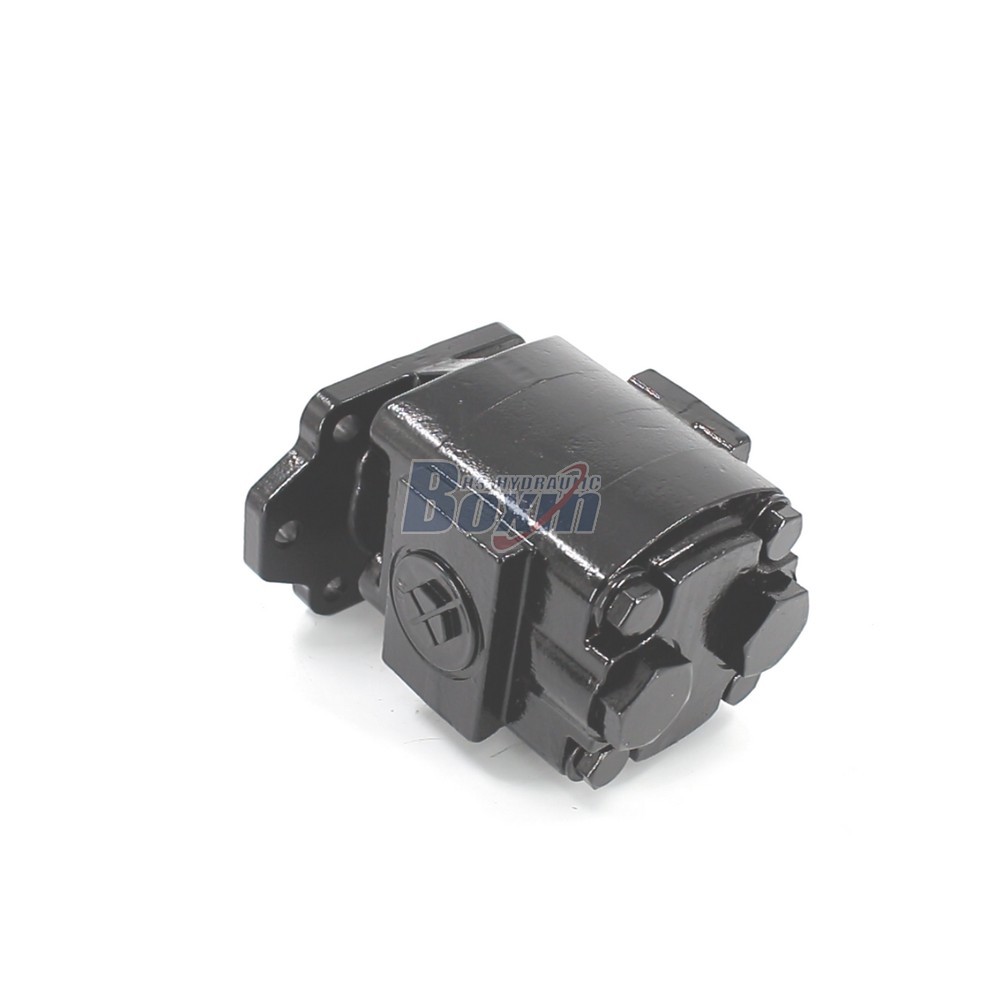

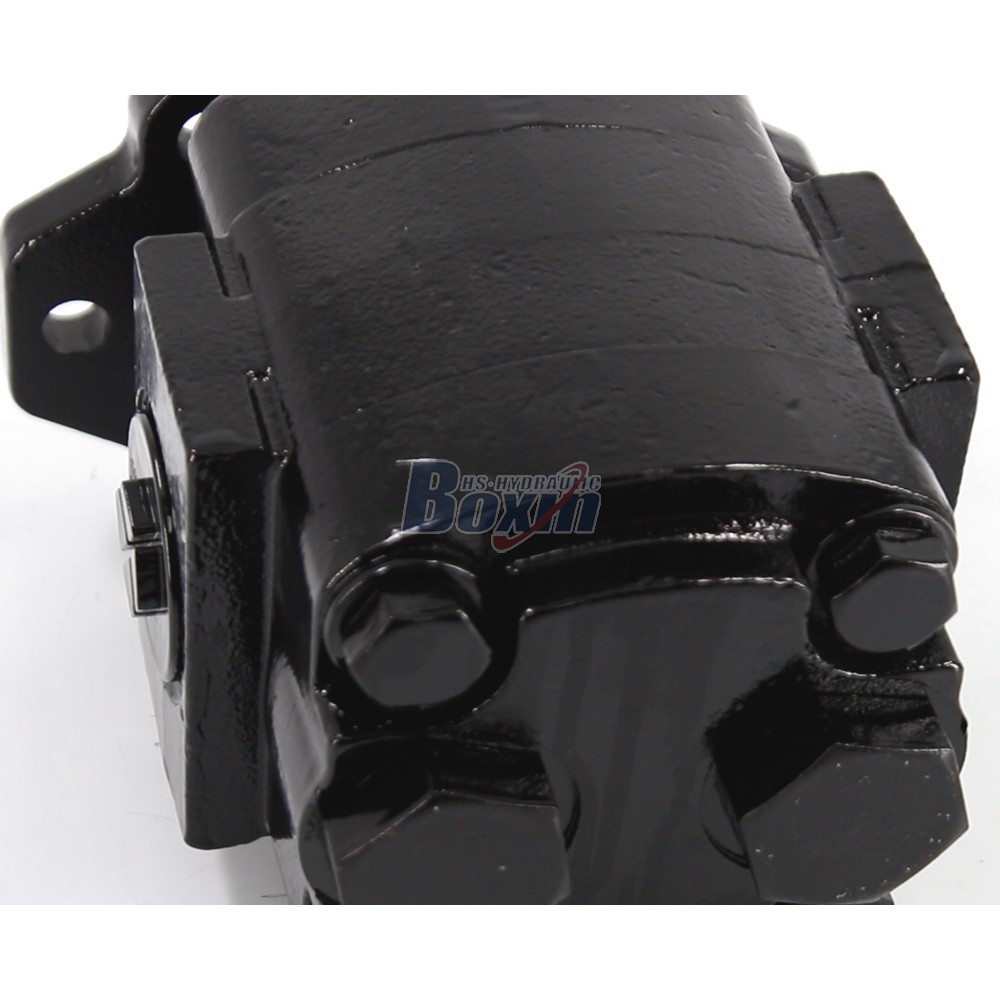

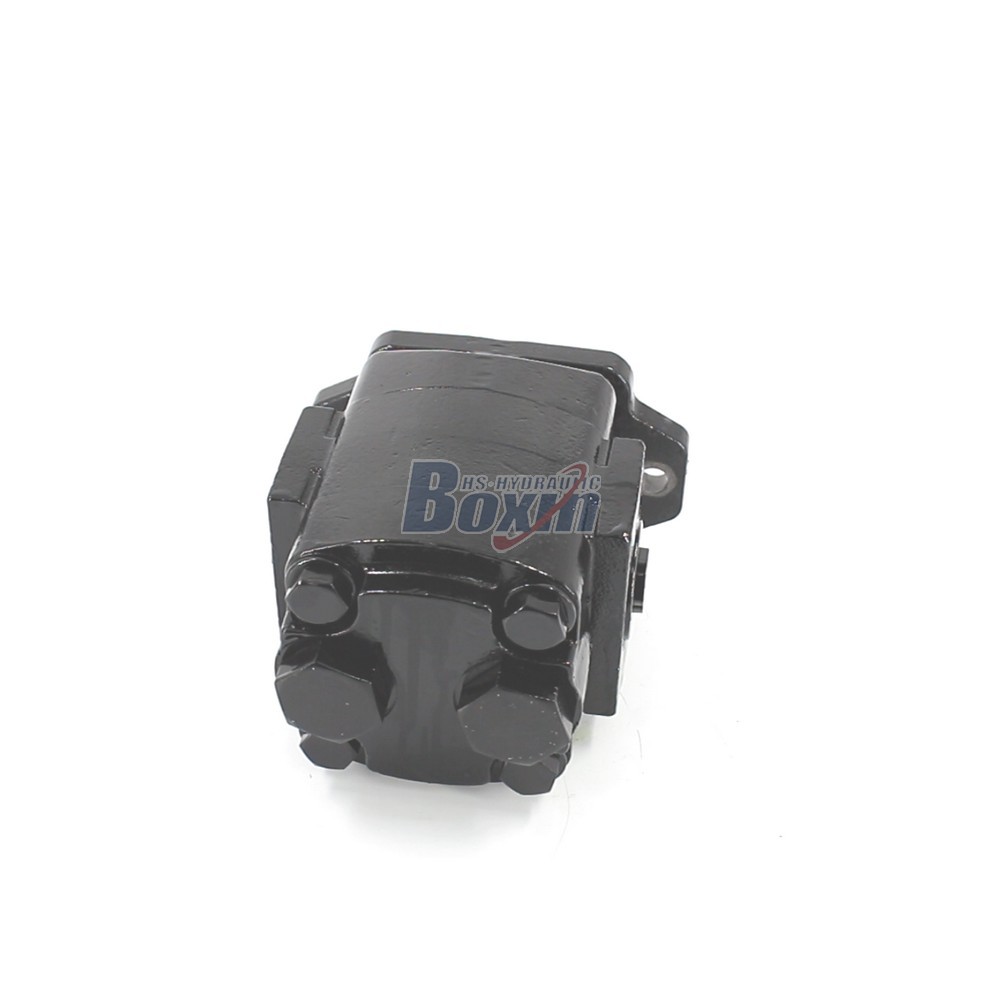

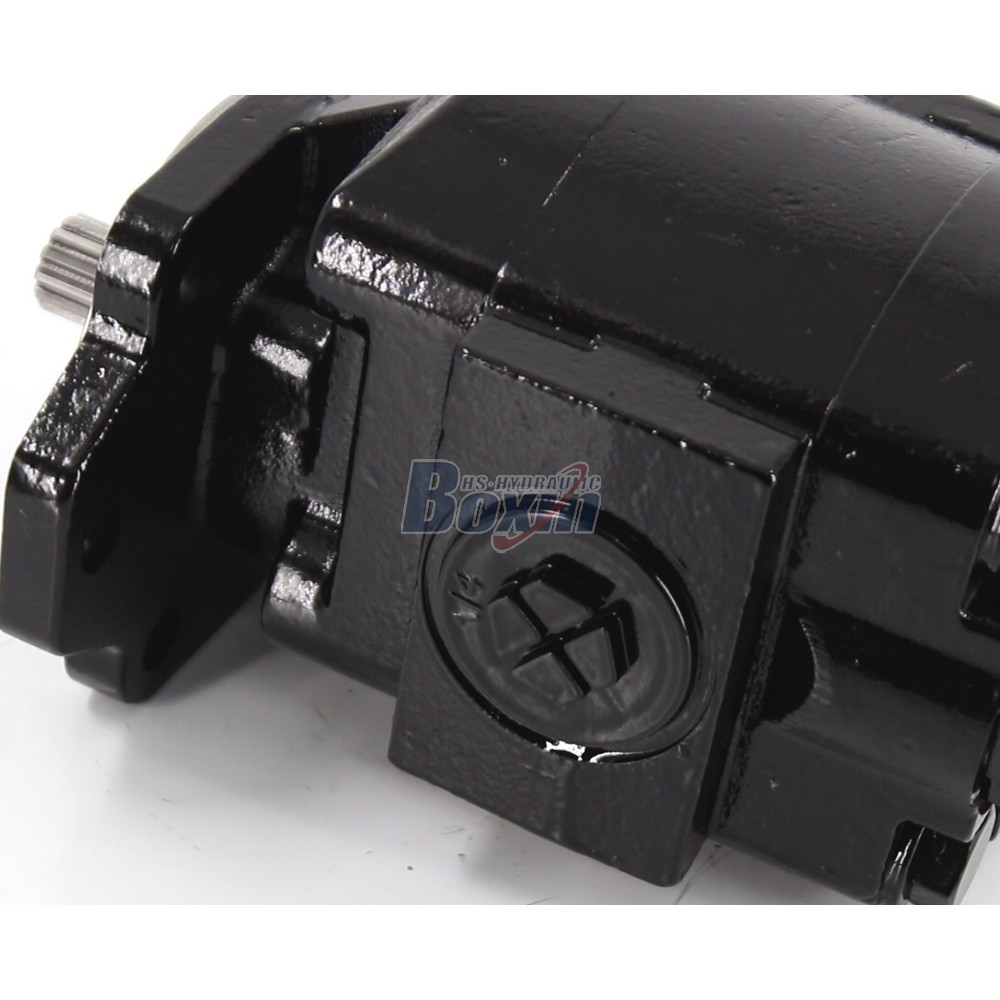

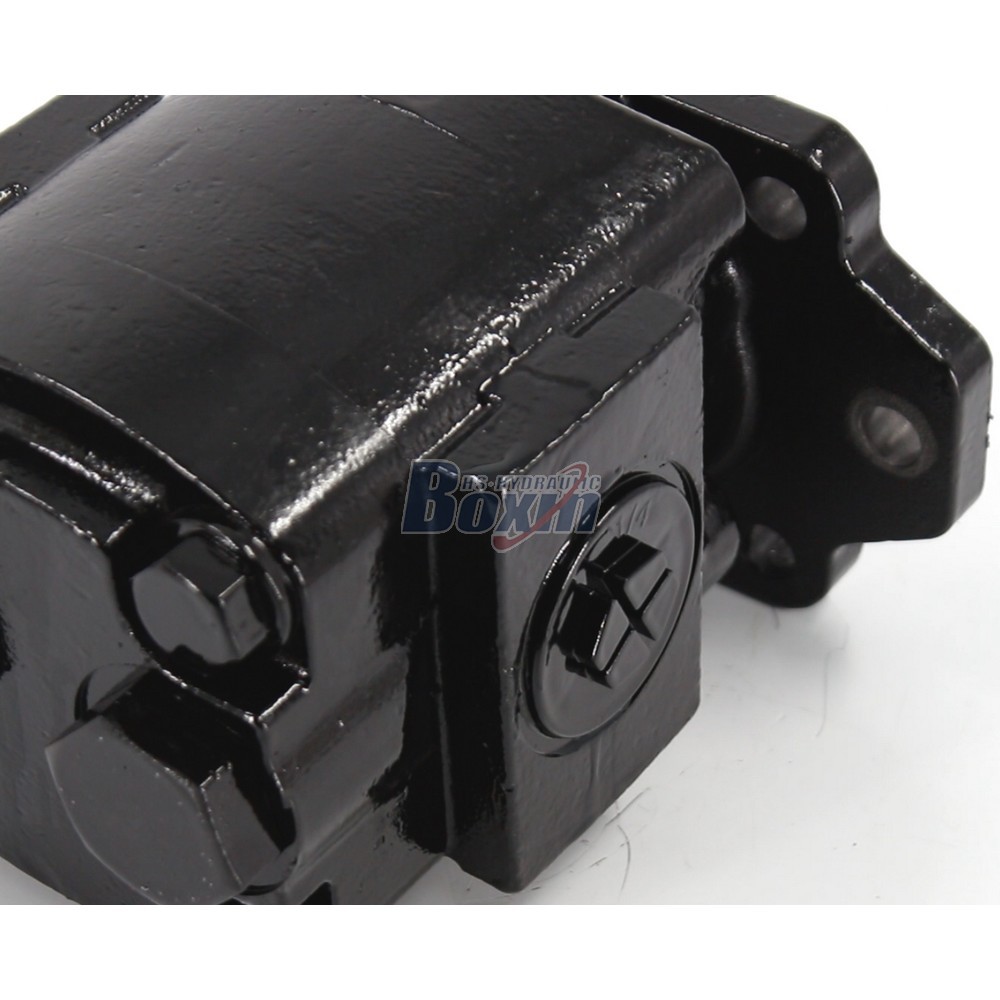

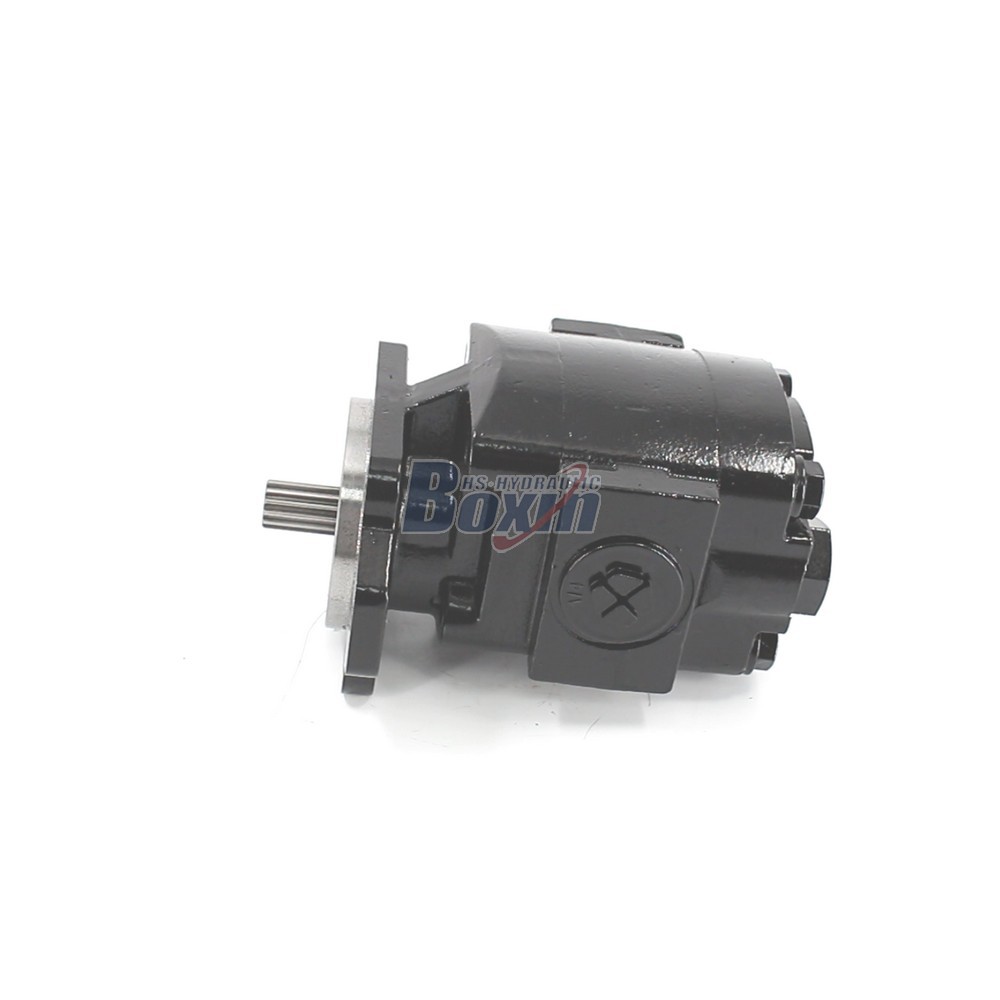

Factory Direct Supply P21A646JEAL20-25 64.6 cc/rev Hydraulic Gear Pump

Factory Direct Supply P21A646JEAL20-25 64.6 cc/rev Hydraulic Gear Pump

Factory Direct Supply P21A646JEAL20-25 64.6 cc/rev Hydraulic Gear Pump drawing image

This Factory Direct Supply P21A646JEAL20-25 Hydraulic Gear Pump features a 64.6 cc/rev displacement, 16 MPa rated pressure, and bidirectional rotation for versatile application. Manufactured by a Professional Manufacturer with 25+ years of experience, it is ideal for wheel loaders, excavators, and agricultural machinery, ensuring reliable performance and OEM compatibility.

ซีรีส์ P21 ปั๊มเฟืองไฮดรอลิก พารามิเตอร์
ปริมาตรกระจัด 64.6 ซีซี/รอบ
แรงดันที่กำหนด แรงดัน 16 MPa (2320 psi)
แรงดันสูงสุด แรงดัน 17 MPa (2465 psi)
ความเร็วที่กำหนด 600 รอบ/นาที
ความเร็วสูงสุด ความเร็ว 2400 รอบต่อนาที
ทิศทางการหมุน สองทิศทาง
วัสดุ เหล็กหล่อ
โครงสร้าง ปั๊มเกียร์ภายนอก
เวอร์ชันหน้าแปลน หน้าแปลนรูปไข่, หน้าแปลนสี่เหลี่ยม, รูยึดตามมาตรฐาน ISO-4, รูยึดตามมาตรฐาน UNI-3, หน้าแปลน SAE
ประเภทเพลา Involute Spline

**1. High-Efficiency Hydraulic Gear Pump Specifications**
- Delivers precise flow with 64.6 cc/rev displacement, operating at a rated speed of 2000 r/min and max speed of 2400 r/min.
- Handles demanding tasks with a rated pressure of 16 MPa (2320 psi) and max pressure of 17 MPa (2465 psi), ensuring stable power output.

**2. Versatile P21 Series Gear Pump Applications**
- Designed for broad compatibility with construction and earth-moving equipment, including wheel loaders, backhoe loaders, and skid steer loaders.
- Suitable for material handling and agricultural vehicles like forklifts, telehandlers, tractors, and dumpers, offering bidirectional rotation flexibility.

**3. Reliable 64.6cc Hydraulic Pump Quality Control**
- Produced in IATF 16949 certified facilities with 260+ machining centers; every unit undergoes 100% bench testing for pressure, flow, and sealing.
- Ensures cleanliness and durability through CMM inspection and SGS detection, backed by 25+ autonomous patents for consistent field performance.

**4. Customizable Construction Machinery Hydraulic Pump Solutions**
- Supported by 35+ senior engineers for full OEM/ODM services, including custom casting, appearance design, and laser logo branding.
- Offers Private Label options and direct replacement for major international brands, meeting specific technical requirements for global distributors.

**5. Factory Direct Sales & Global Logistics**
- Leverage Wholesale Direct Sales from a 68,000 sqm facility with an annual capacity of 1,500,000 units, ensuring short lead times.
- Products are secured with rust-proof treatment and heavy-duty wooden crate packaging, guaranteeing safe delivery for Exported Worldwide orders.
