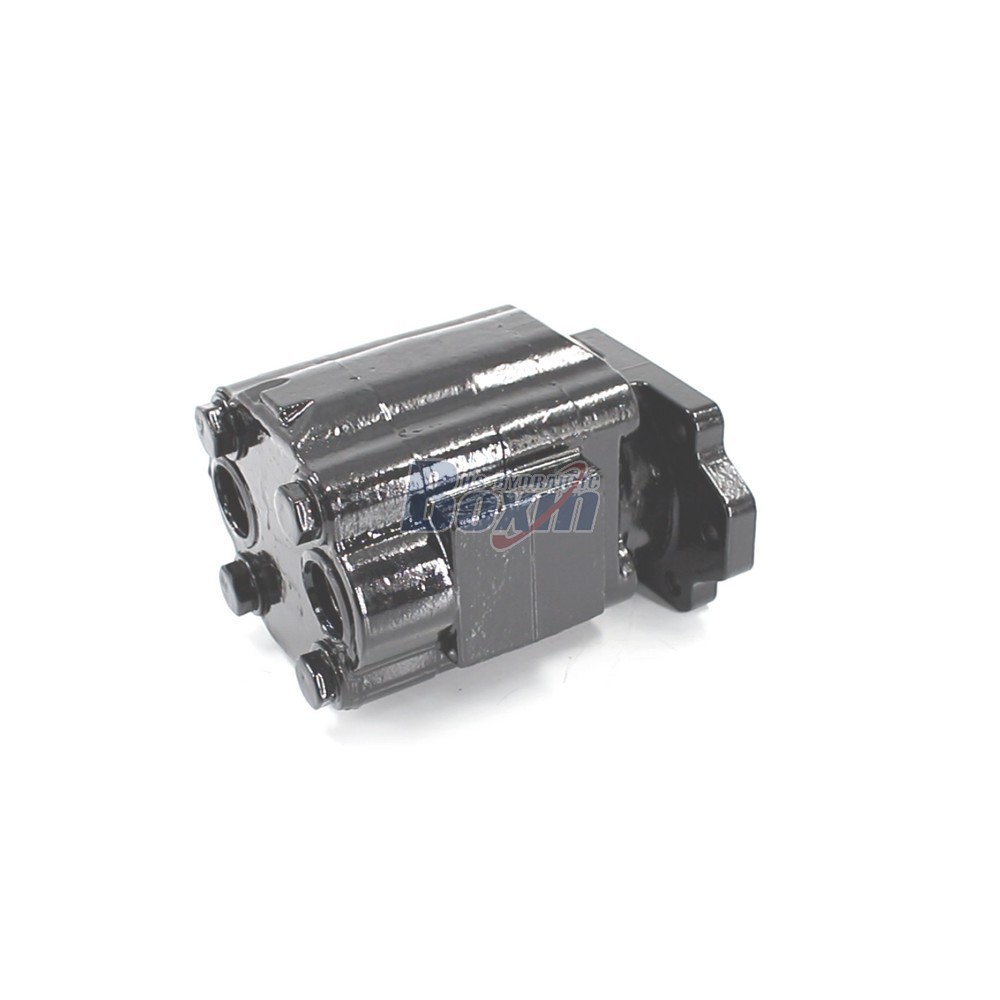

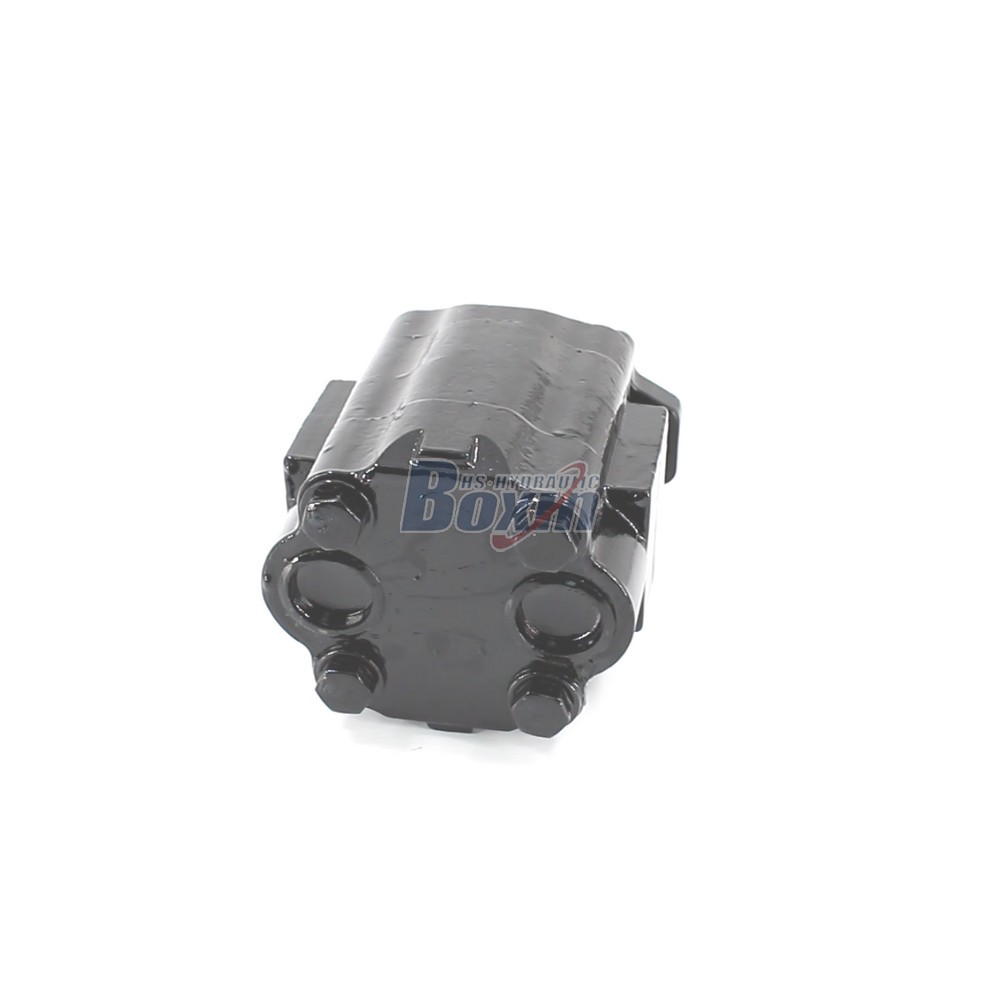

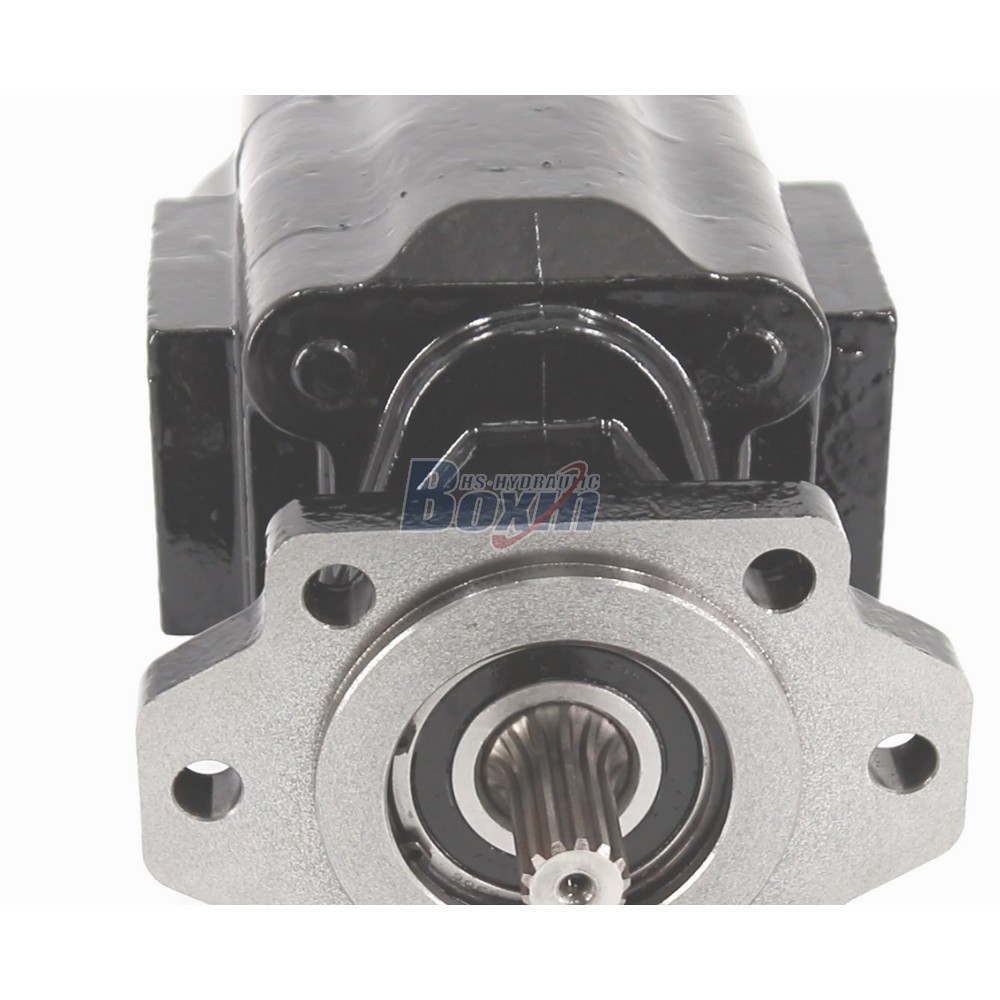

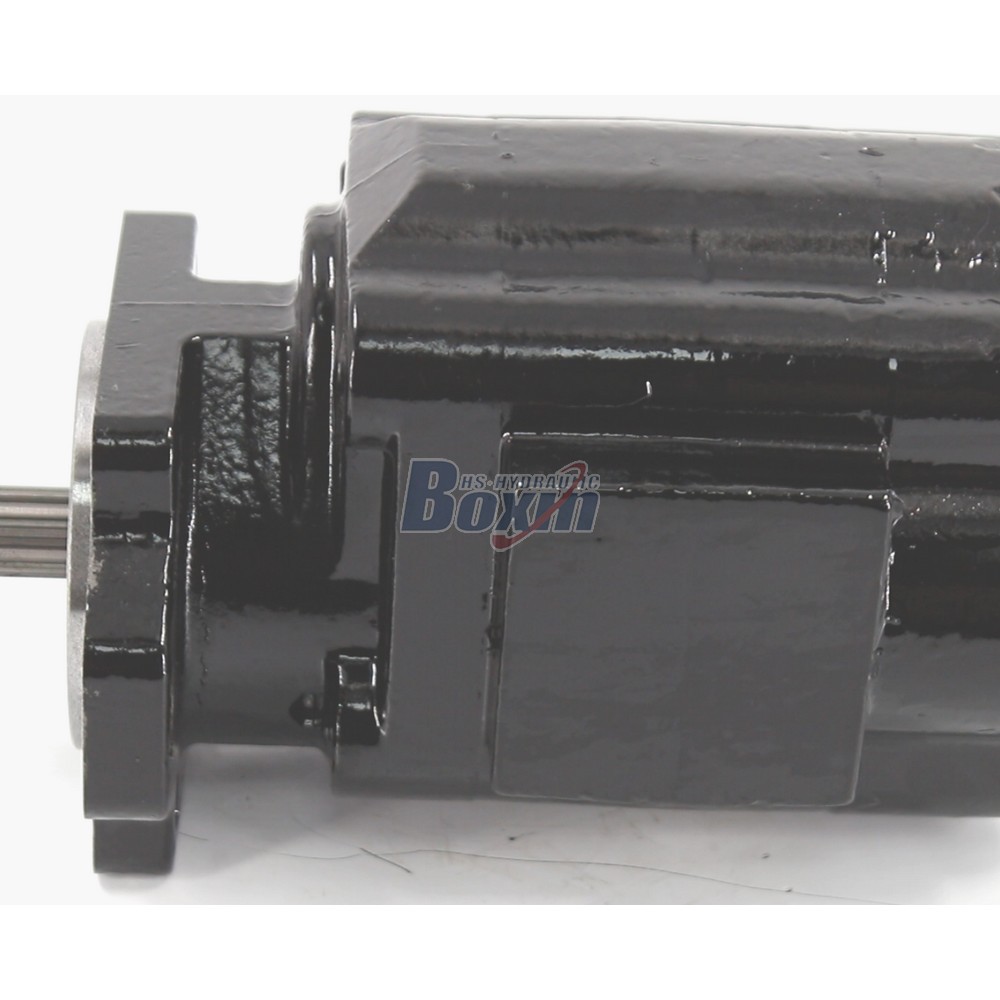

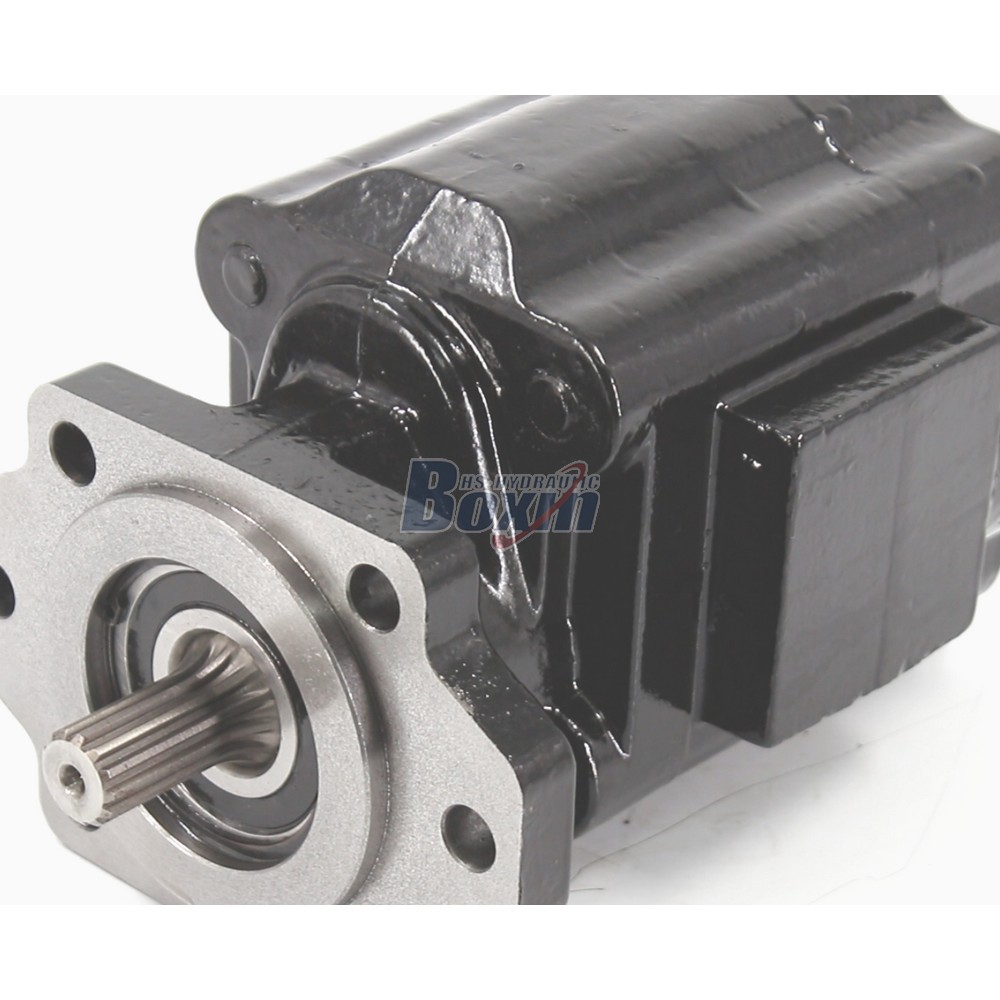

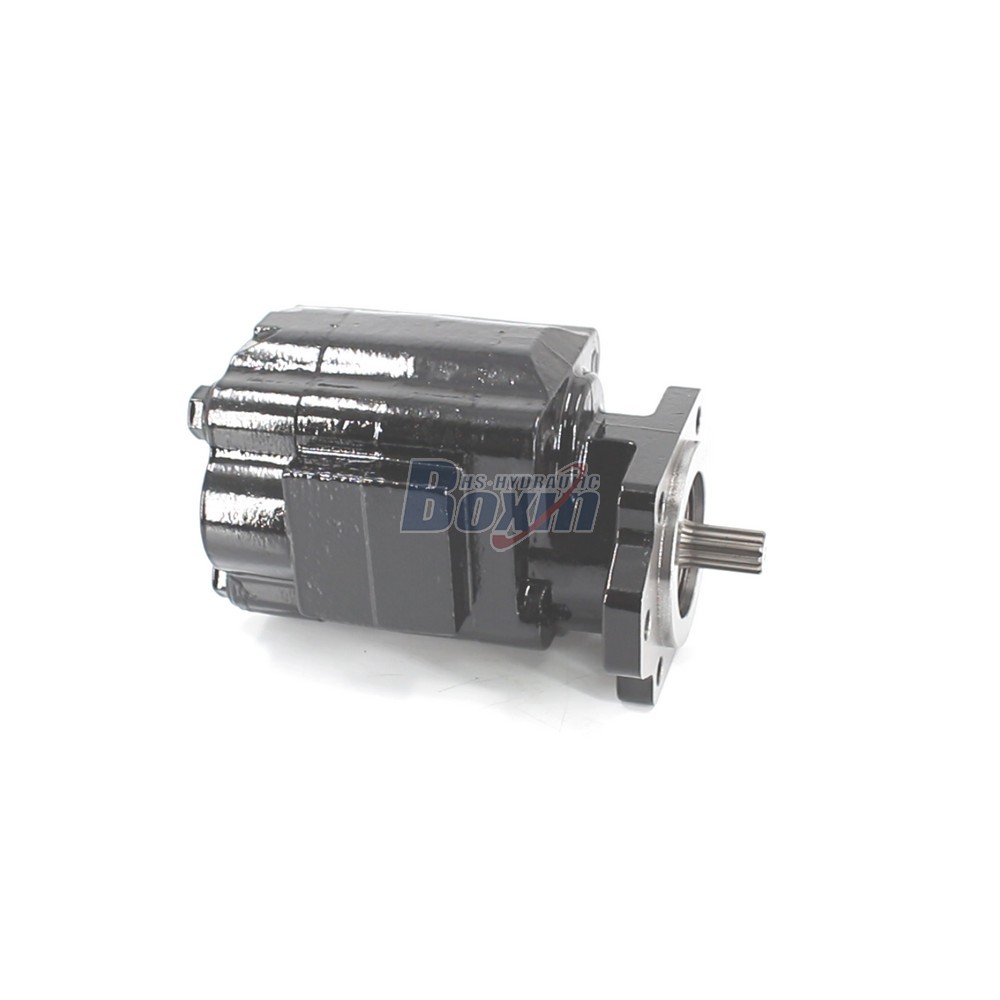

Heavy Duty P51A646TEYR25-25 Hydraulic External Gear Pump

ปริมาตรกระจัด:104.5 ซีซี/รอบ

แรงดันที่กำหนด:แรงดัน 16 MPa (2320 psi)

แรงดันสูงสุด:แรงดัน 17 MPa (2465 psi)

ความเร็วสูงสุด:ความเร็ว 2400 รอบต่อนาที

ทิศทางการหมุน:สองทิศทาง

แบรนด์:BXHS

ประเภทสินค้า:ปั๊มเฟืองไฮดรอลิก

ซีรี่ส์ผลิตภัณฑ์:ซีรีส์ P51 ปั๊มเฟืองไฮดรอลิก

ขนาดบรรจุภัณฑ์:34*17*17

น้ำหนักรวม:24.00 kg

สถานะสินค้า: มีสินค้าในสต็อก

156 ผู้เข้าชมที่กำลังมองหาผลิตภัณฑ์นี้

Heavy Duty P51A646TEYR25-25 Hydraulic External Gear Pump

Heavy Duty P51A646TEYR25-25 Hydraulic External Gear Pump

Heavy Duty P51A646TEYR25-25 Hydraulic External Gear Pump drawing image

As a leading manufacturer of large-scale hydraulic solutions, we offer the high-performance P51A646TEYR25-25 Hydraulic External Gear Pump. This heavy-duty series features a 104.5 cc/rev displacement and bidirectional rotation, designed for stable power transmission in demanding industrial and mobile applications.

ซีรีส์ P51 ปั๊มเฟืองไฮดรอลิก พารามิเตอร์
ปริมาตรกระจัด 104.5 ซีซี/รอบ, 21 ซีซี/รอบ, 41.8 ซีซี/รอบ, 52.3 ซีซี/รอบ, 62.7 ซีซี/รอบ, 64.6 ซีซี/รอบ
แรงดันที่กำหนด แรงดัน 16 MPa (2320 psi)
แรงดันสูงสุด แรงดัน 17 MPa (2465 psi)
ความเร็วที่กำหนด ความเร็ว 2200 รอบต่อนาที
ความเร็วสูงสุด ความเร็ว 2400 รอบต่อนาที
ทิศทางการหมุน สองทิศทาง
วัสดุ เหล็กหล่อ
โครงสร้าง ปั๊มเกียร์ภายนอก
เวอร์ชันหน้าแปลน หน้าแปลนรูปไข่, รูยึดตามมาตรฐาน ISO-4, หน้าแปลน SAE
ประเภทเพลา Involute Spline

Our factory specializes in the mass production of the P51A646TEYR25-25 Heavy Duty Hydraulic External Gear Pump, delivering 104.5 cc/rev displacement with a rated pressure of 16 MPa (2320 psi). Engineered for versatility, this bidirectional model supports speeds ranging from 600 to 2400 r/min, making it suitable for a wide variety of construction, agricultural, and industrial machinery. As a global manufacturing partner, we provide comprehensive services including OEM, private labeling, and custom engineering to meet specific technical requirements. We are currently expanding our international network and actively seeking long-term cooperation with distributors, wholesalers, agents, and professional traders. By sourcing directly from our facility, partners benefit from reliable factory supply, competitive wholesale pricing, and rigorous quality control. Whether you need bulk orders for retail or specialized units for large-scale equipment, our manufacturing expertise ensures performance and durability in every pump.
