การผลิตและการจัดส่ง
ระยะเวลารอการผลิต 15-30 วัน

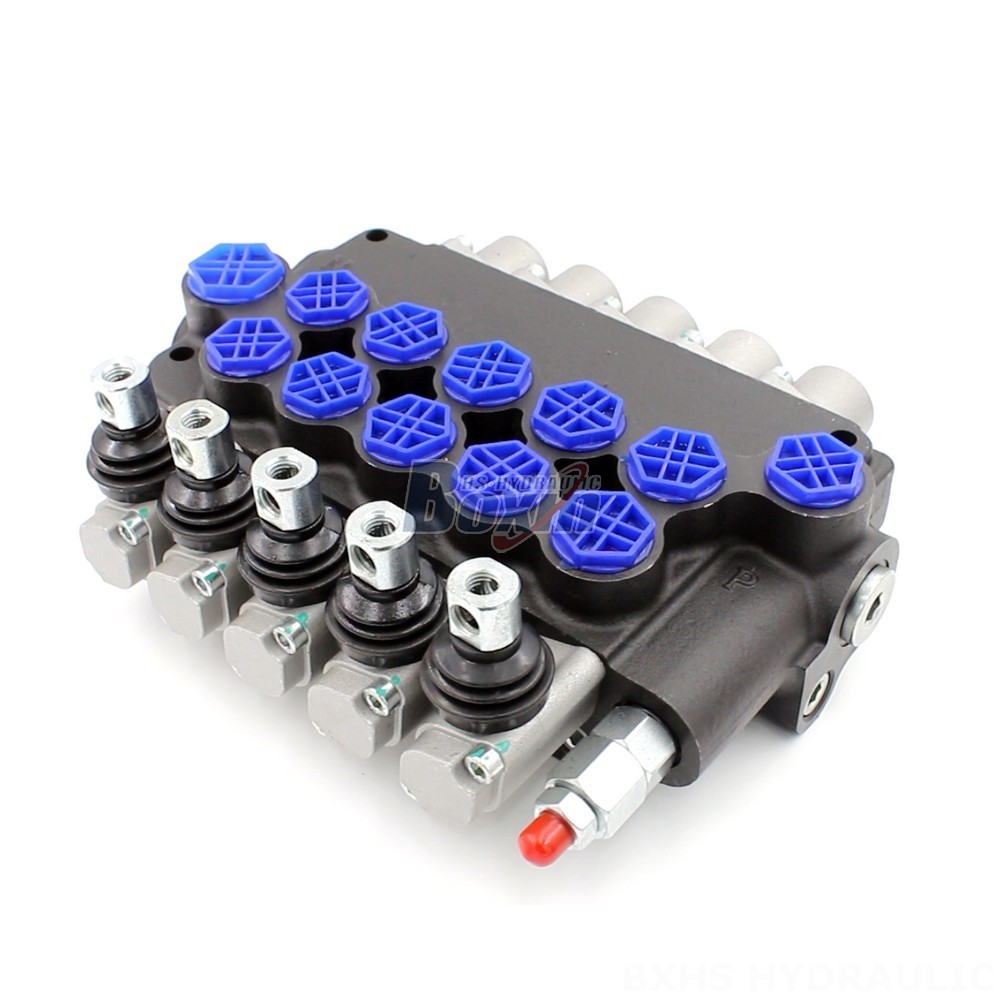

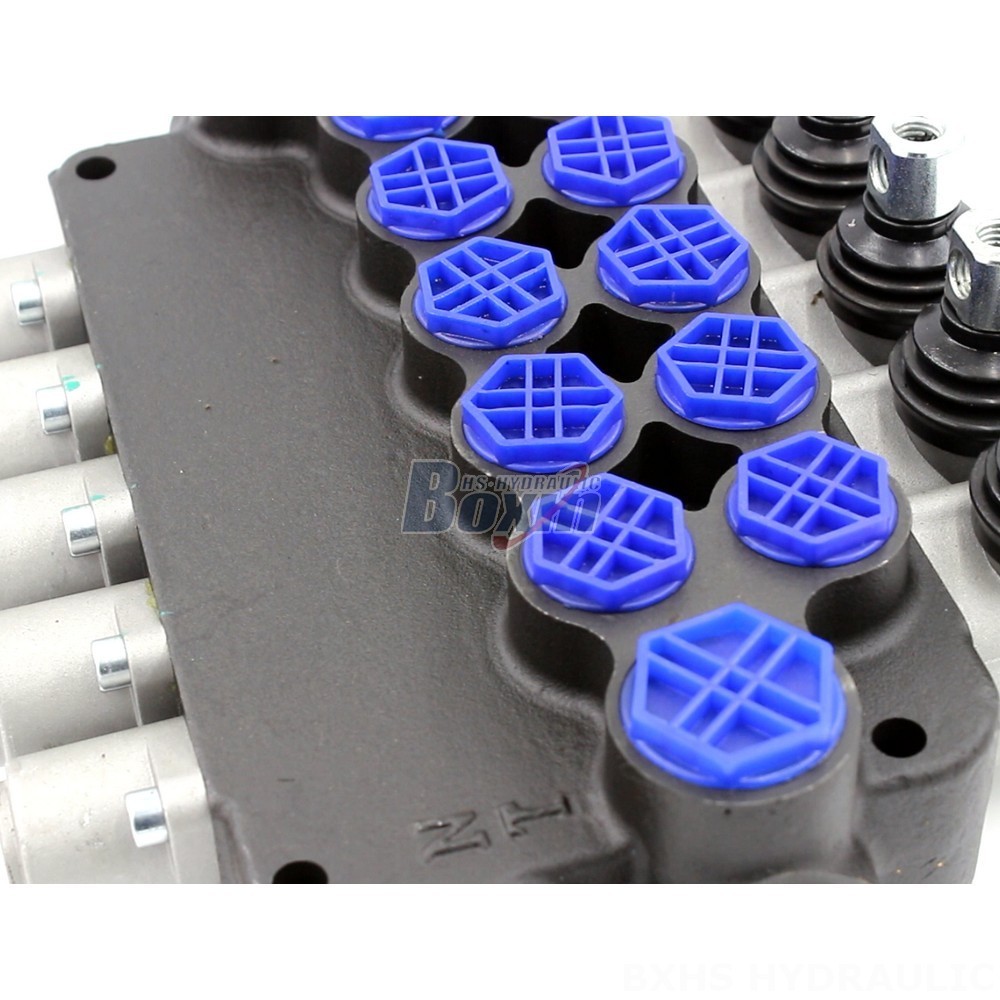

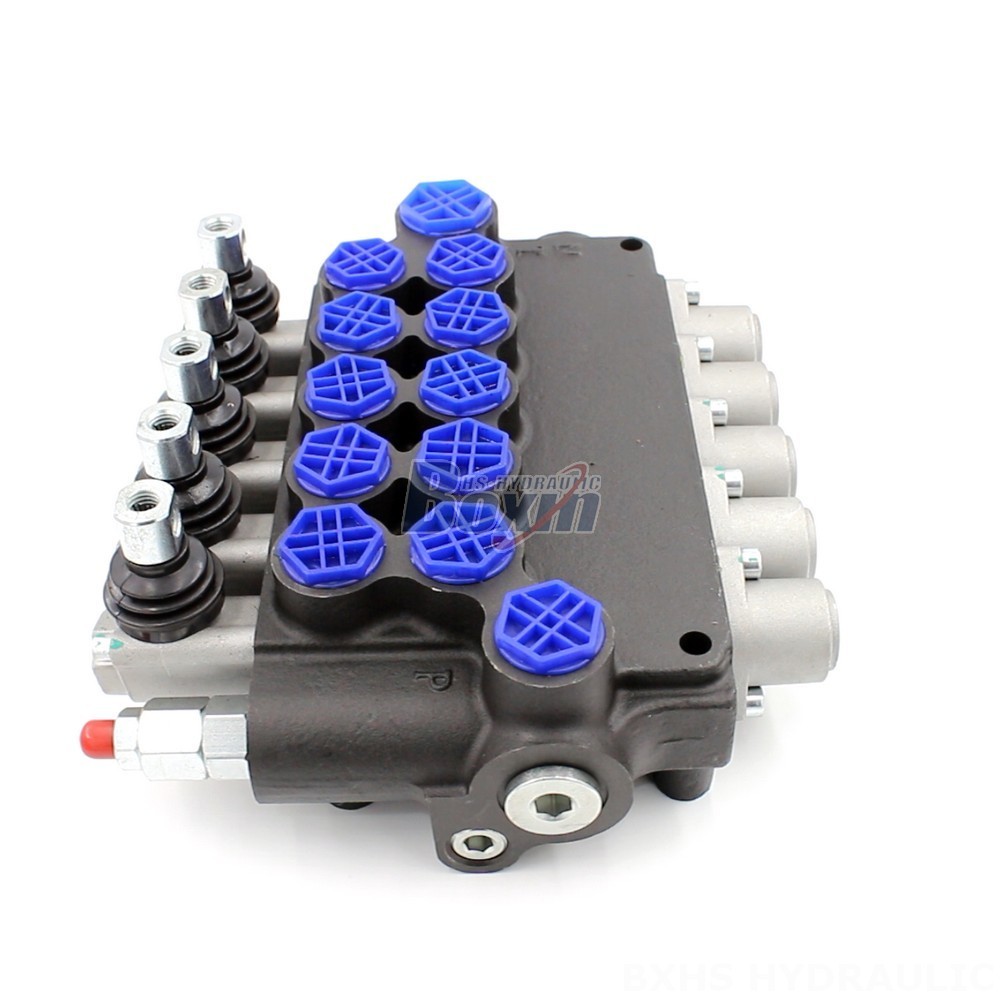

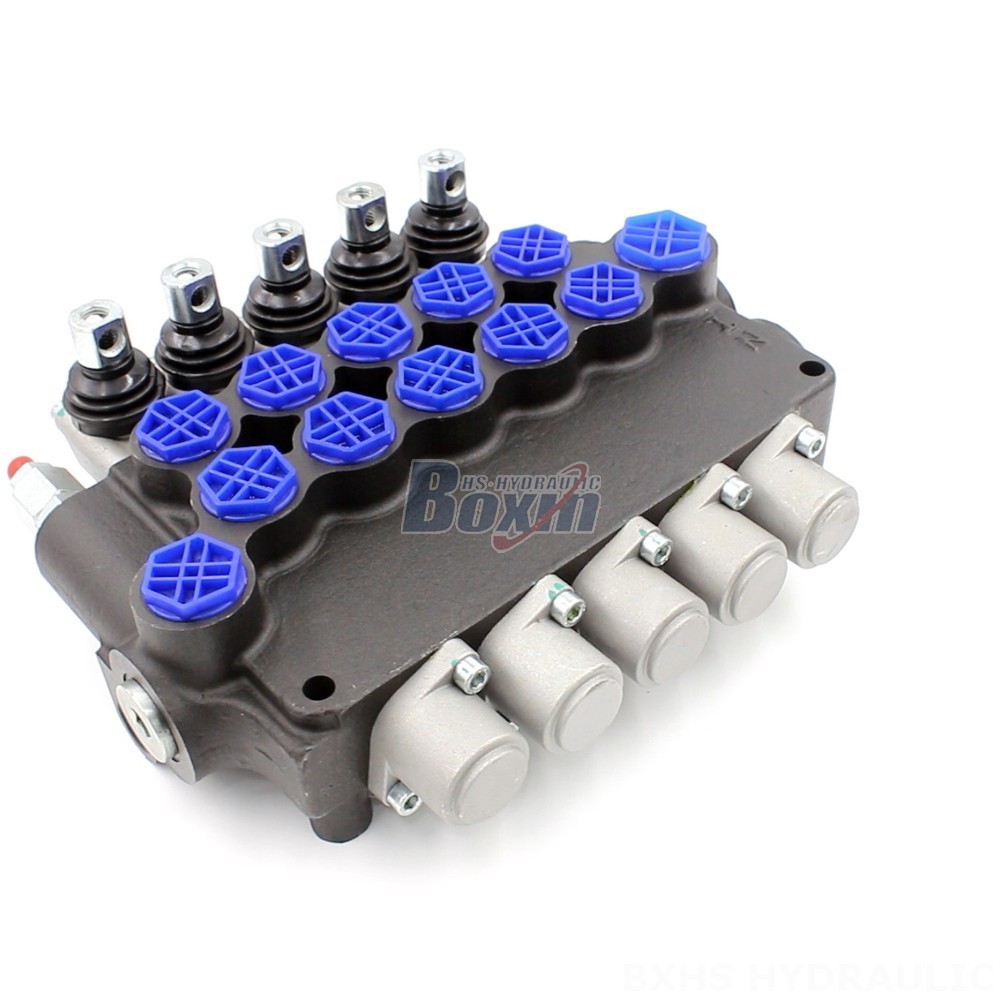

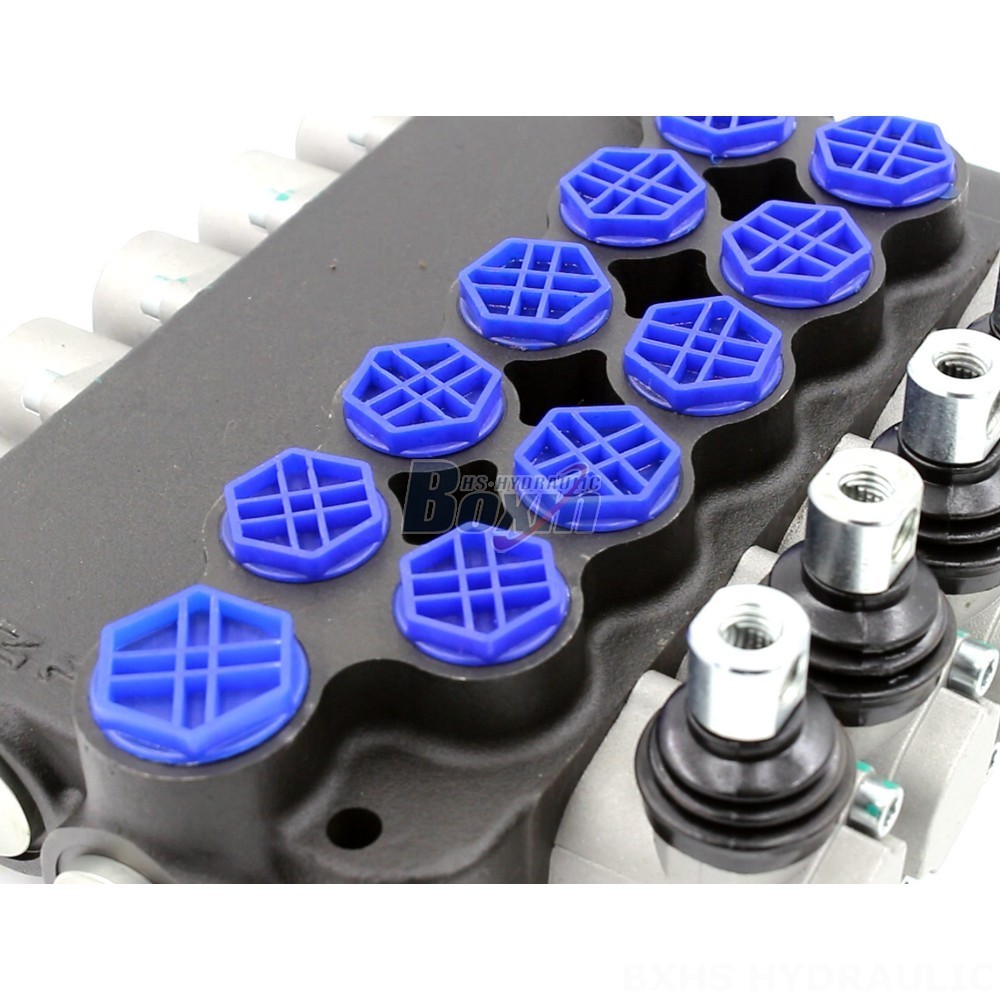

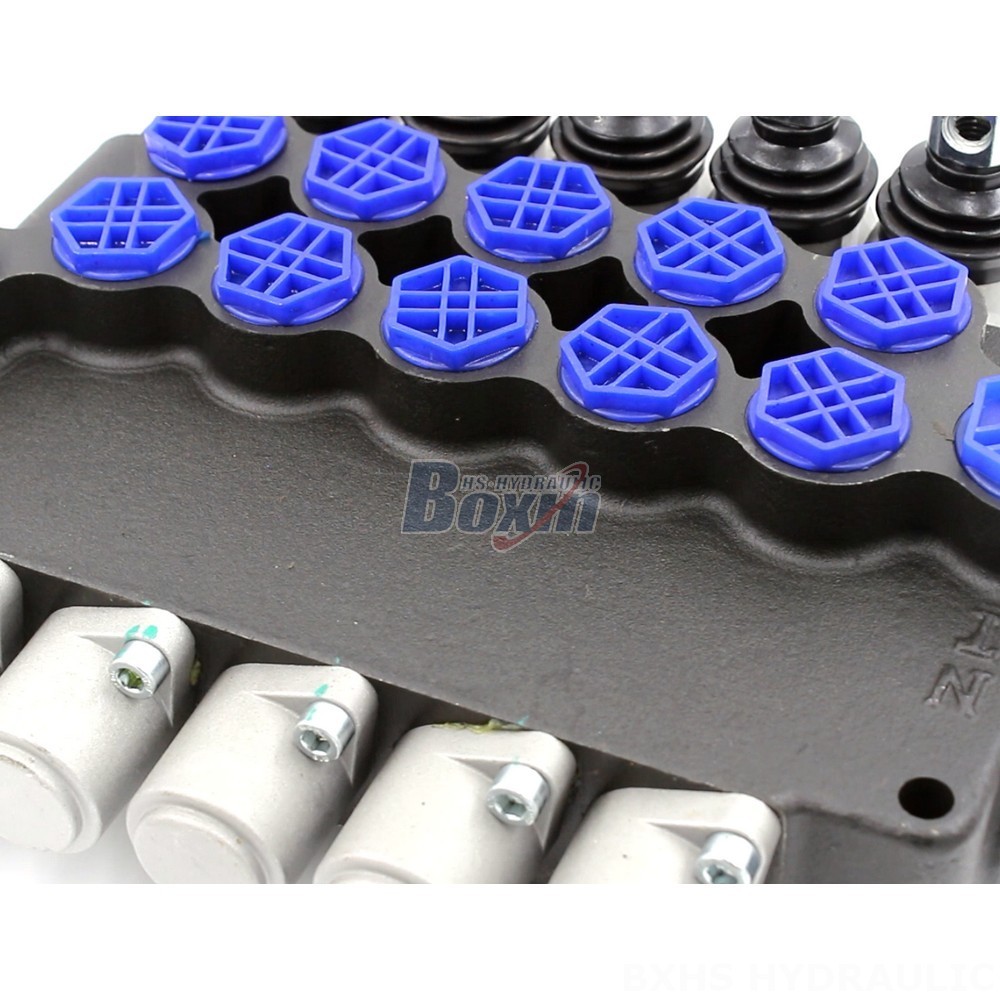

The P80F Series Electric Actuated Hydraulic Directional Control Valve is a reliable and efficient solution for controlling hydraulic systems in a wide range of construction and material handling equipment. This 5-section, monoblock valve features a rated flow of 80 L/min and a maximum pressure of 250 bar, making it ideal for demanding applications.
| ซีรีส์ P80F วาล์วควบคุมทิศทางแบบโมโนบล็อก พารามิเตอร์ | |
|---|---|
| สปูล | 1 สปูล, 2 สปูล, 3 สปูล, 4 สปูล, 5 สปูล, 6 สปูล, 7 สปูล |
| วิธีการควบคุม | ด้วยตนเอง, ลม, ไฟฟ้าลม, ไฟฟ้าไฮดรอลิก, โซลินอยด์, ไฮดรอลิก, ไฮดรอลิกและแบบแมนนวล, สายเคเบิล, จอยสติก |
| ขนาดพอร์ต | ขนาด G1/2, ขนาด G3/4, ขนาด M27×2.0, ขนาด SAE 10, ขนาด SAE 12, ขนาด 1/2 NPT, ขนาด 3/4 NPT |
| ส่วน | 1 ส่วน, 2 ส่วน, 3 ส่วน, 4 ส่วน, 5 ส่วน, 6 ส่วน, 7 ส่วน |
| ช่วงอุณหภูมิโดยรอบ | -40°C ถึง +80°C (-40°F ถึง +176°F) |
| ช่วงความหนืดในการทำงาน | 15 - 75 มม²/วินาที (15 cSt ถึง 75 cSt) |
| พอร์ตทางออก | ขนาด G1/2, ขนาด G3/4, ขนาด M27×2.0, ขนาด SAE 10, ขนาด SAE 12, ขนาด 1/2 NPT |
| แรงดันสูงสุด | 315 บาร์ (4,600 psi) |
| อัตราการไหลที่กำหนด | 80 ลิตร/นาที (21.2 แกลลอนสหรัฐ/นาที) |
| ประเภทโครงสร้าง | วาล์วแบบโมโนบล็อก |
| พอร์ตทางเข้า | ขนาด G1/2, ขนาด G3/4, ขนาด M27×2.0, ขนาด SAE 10, ขนาด SAE 12, ขนาด 1/2 NPT, ขนาด 3/4 NPT |
This electric actuated hydraulic directional control valve from the P80F series is a robust and versatile solution for controlling hydraulic systems in heavy-duty machinery. It offers a 5-section, monoblock design with a rated flow of 80 L/min and a maximum pressure of 250 bar. Designed for reliability and durability, this valve boasts a wide operating viscosity range of 15 to 75 mm²/s and can withstand ambient temperatures from -40°C to +80°C. With its 5-spool configuration, it provides precise and efficient control for various functions. Its versatility makes it suitable for a wide range of applications including telehandlers, forklifts, all-terrain cranes, stackers, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, backhoe loaders, harvesters, and bale wrappers.
