P40-2OT Spool Hydraulic Valve | Factory Direct & Customizable

วิธีการควบคุม:ด้วยตนเองและจอยสติก

สปูล:2 สปูล

อัตราการไหลที่กำหนด:40 ลิตร/นาที (10.5 แกลลอนสหรัฐ/นาที)

แรงดันสูงสุด:250 บาร์ (3,600 psi)

พอร์ตทางเข้า:ขนาด G1/2

พอร์ตทางออก:ขนาด G1/2

ขนาดพอร์ต:ขนาด G3/8

แบรนด์:BXHS

ประเภทสินค้า:วาล์วควบคุมทิศทางแบบโมโนบล็อก

ซีรี่ส์ผลิตภัณฑ์:ซีรีส์ P40 วาล์วควบคุมทิศทางแบบโมโนบล็อก

ขนาดบรรจุภัณฑ์:23*18*13

น้ำหนักรวม:5.20 kg

สถานะสินค้า: มีสินค้าในสต็อก

1184 ผู้เข้าชมที่กำลังมองหาผลิตภัณฑ์นี้

P40-2OT Spool Hydraulic Valve | Factory Direct & Customizable

P40-2OT Spool Hydraulic Valve | Factory Direct & Customizable

P40-2OT Spool Hydraulic Valve | Factory Direct & Customizable drawing image

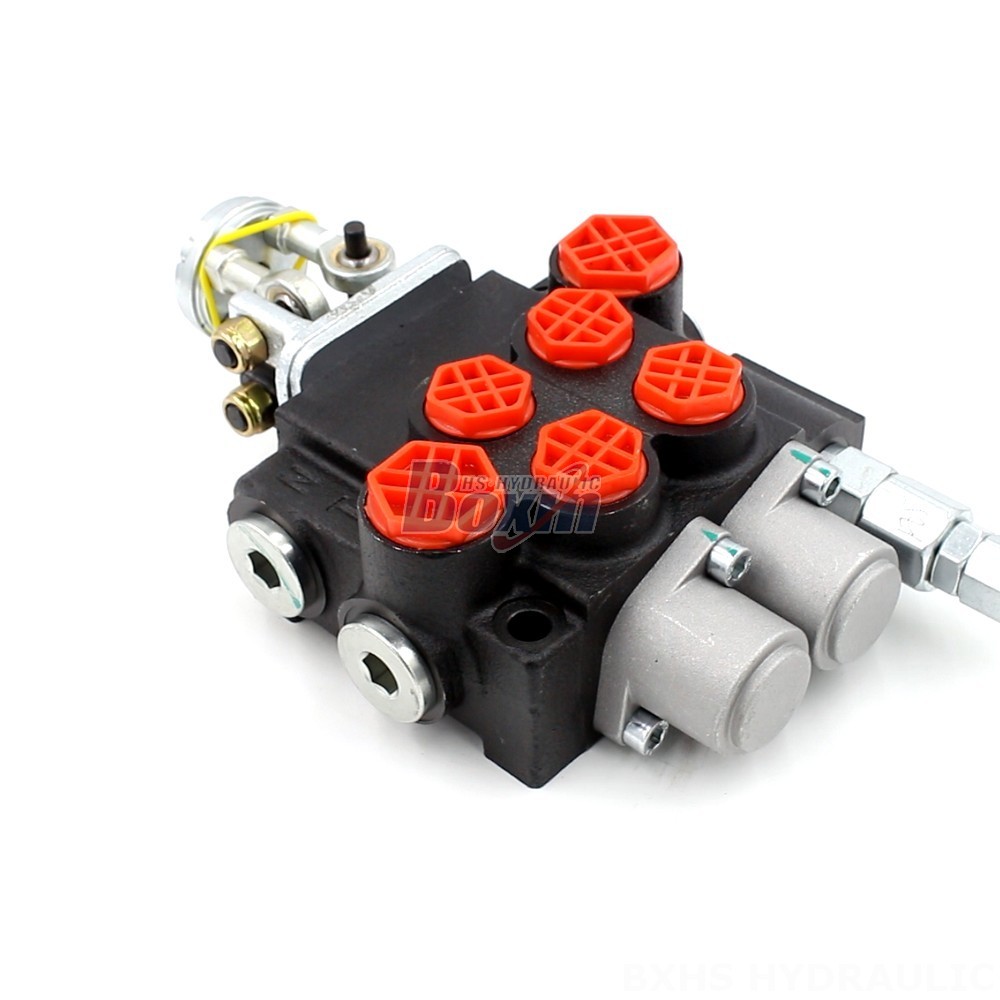

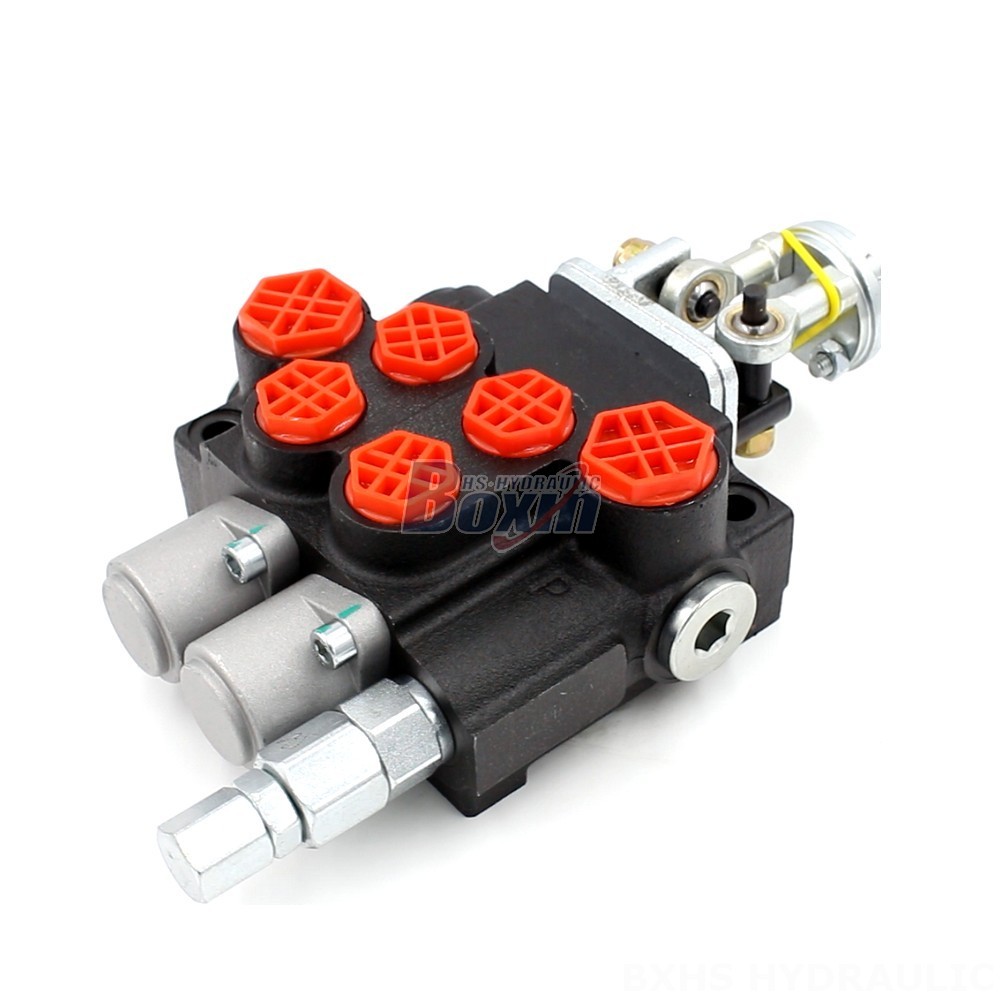

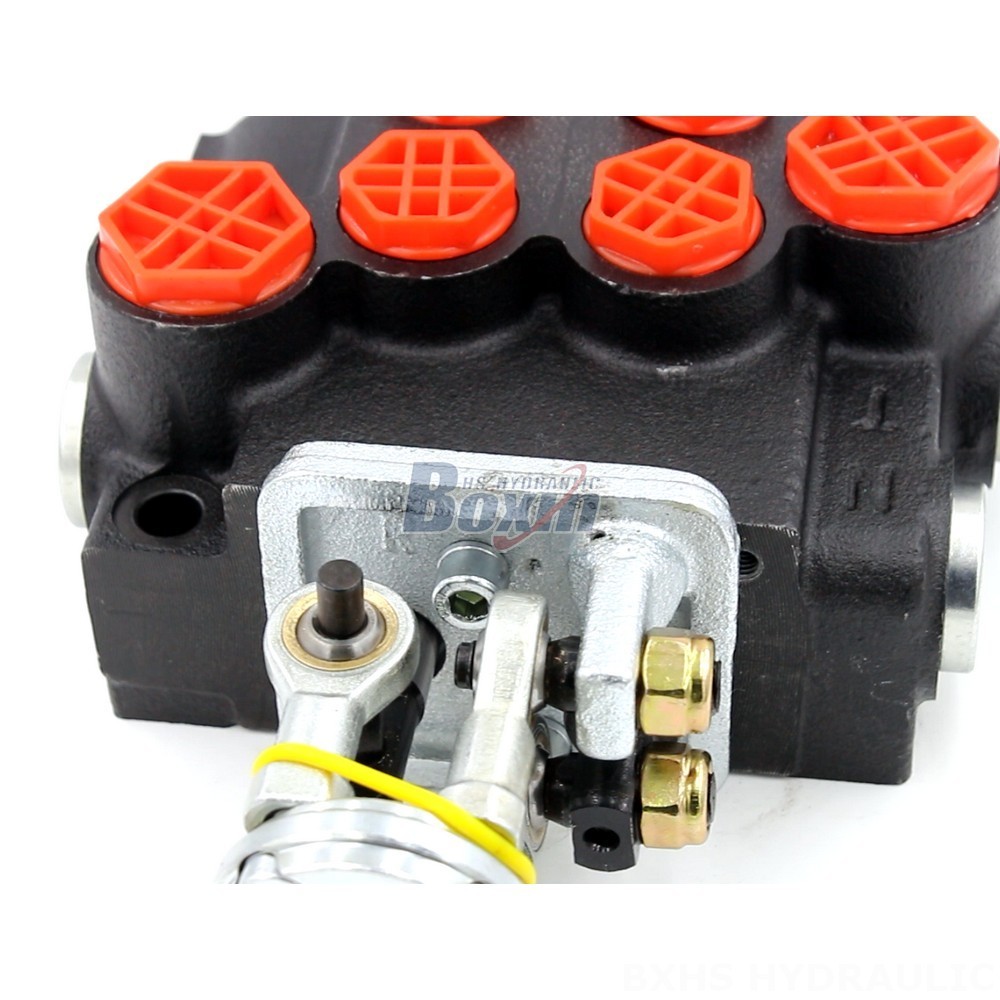

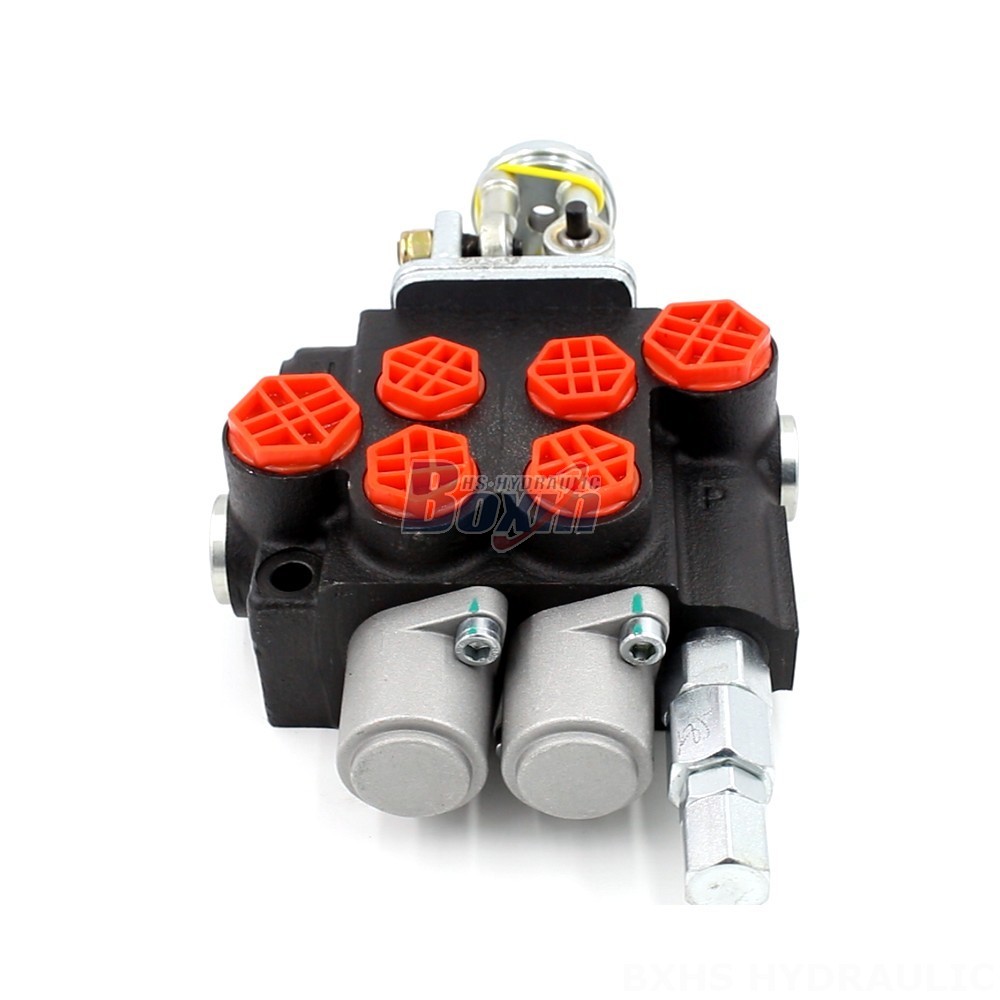

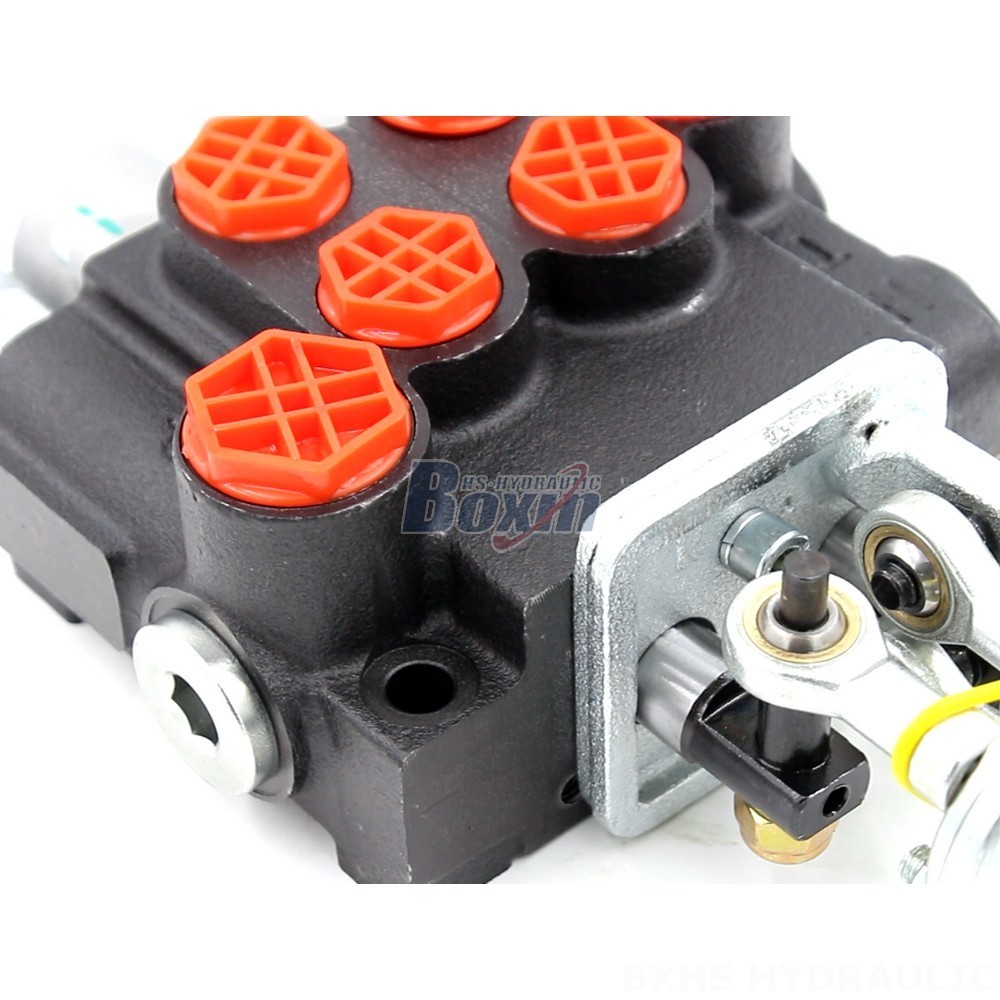

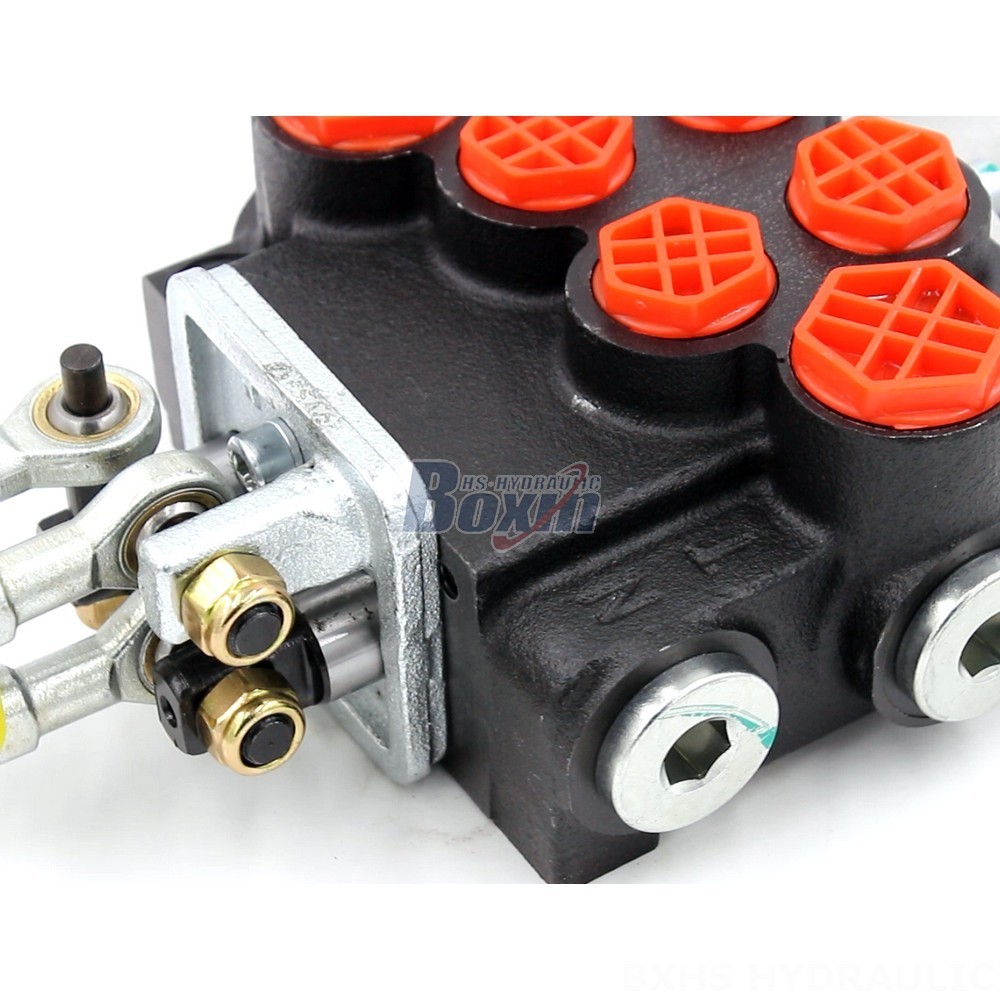

The P40-2OT is a 4 Spool Hydraulic Valve Monoblock in the P40 Series, designed for a variety of applications in construction, material handling, agriculture and industrial vehicles. This valve features 2 sections, a rated flow of 40 L/min and a maximum pressure of 250 bar. It's available with manual or joystick control and is customizable to meet your specific needs.

ซีรีส์ P40 วาล์วควบคุมทิศทางแบบโมโนบล็อก พารามิเตอร์
วิธีการควบคุม ด้วยตนเอง, ลม, ไฟฟ้าลม, ไฟฟ้าไฮดรอลิก, โซลินอยด์, ไฮดรอลิก, ไฮดรอลิกและแบบแมนนวล, สายเคเบิล, จอยสติก, โซลินอยด์และจอยสติก, ด้วยตนเองและจอยสติก, โซเลนอยด์และสายเคเบิล
สปูล 1 สปูล, 2 สปูล, 3 สปูล, 4 สปูล, 5 สปูล, 6 สปูล, 7 สปูล
ช่วงอุณหภูมิโดยรอบ -40°C ถึง +80°C (-40°F ถึง +176°F)
ประเภทโครงสร้าง วาล์วแบบโมโนบล็อก
ส่วน 1 ส่วน, 2 ส่วน, 3 ส่วน, 4 ส่วน, 5 ส่วน, 6 ส่วน, 7 ส่วน
ช่วงความหนืดในการทำงาน 15 - 75 มม²/วินาที (15 cSt ถึง 75 cSt)
อัตราการไหลที่กำหนด 40 ลิตร/นาที (10.5 แกลลอนสหรัฐ/นาที)
แรงดันสูงสุด 250 บาร์ (3,600 psi)
พอร์ตทางเข้า ขนาด G3/8, ขนาด G1/2, ขนาด M18×1.5, ขนาด M22×1.5, ขนาด SAE 8, ขนาด SAE 10, ขนาด 3/8 NPT, ขนาด 1/2 NPT
พอร์ตทางออก ขนาด G3/8, ขนาด G1/2, ขนาด M18×1.5, ขนาด M22×1.5, ขนาด SAE 8, ขนาด SAE 10, ขนาด 3/8 NPT, ขนาด 1/2 NPT
ขนาดพอร์ต ขนาด G3/8, ขนาด G1/2, ขนาด M18×1.5, ขนาด SAE 8, ขนาด SAE 10, ขนาด 3/8 NPT, ขนาด 1/2 NPT

The P40-2OT is a high-performance 4 Spool Hydraulic Valve Monoblock designed for demanding applications in construction, material handling, agriculture, and industrial vehicles. It features a compact and robust design, offering superior reliability and durability. This valve offers a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi), making it suitable for a wide range of hydraulic systems. The P40-2OT comes with 2 sections and a choice of manual or joystick control, providing flexibility in operation. The valve features a Monoblock structure, ensuring leak-free performance and long service life. It can handle a wide range of operating viscosities, from 15 to 75 mm²/s, and is designed to withstand temperatures ranging from -40°C to +80°C. This valve is fully customizable, allowing you to specify the spool configuration, control method, and other features to meet your specific requirements. The P40-2OT is suitable for use in various vehicles and equipment, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
