การผลิตและการจัดส่ง
ระยะเวลารอการผลิต 15-30 วัน

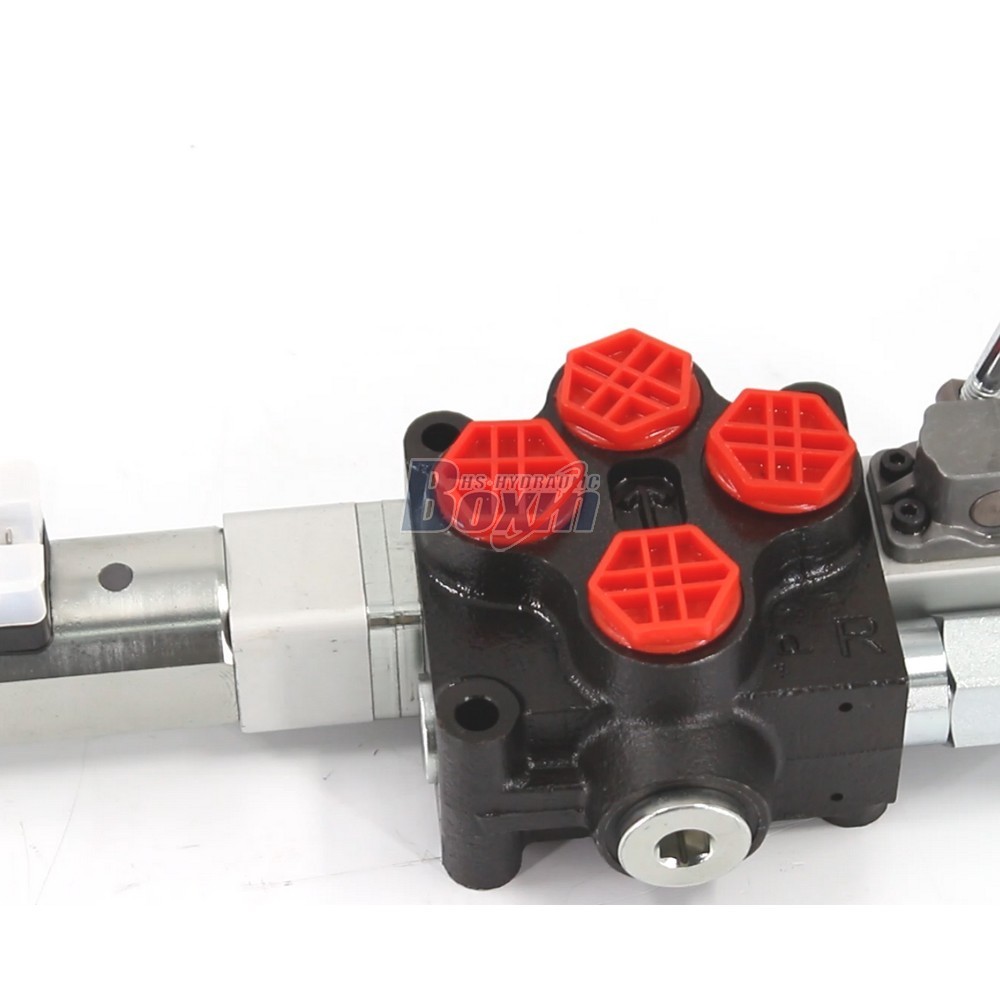

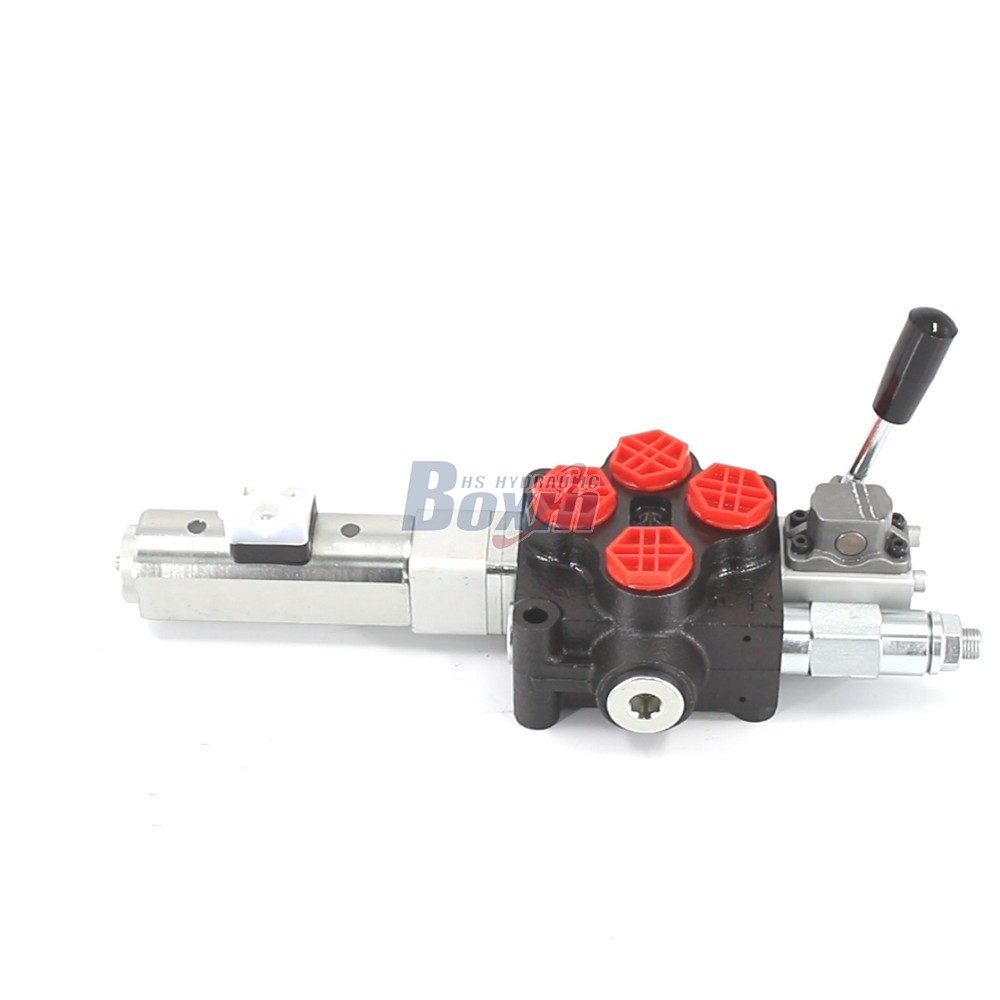

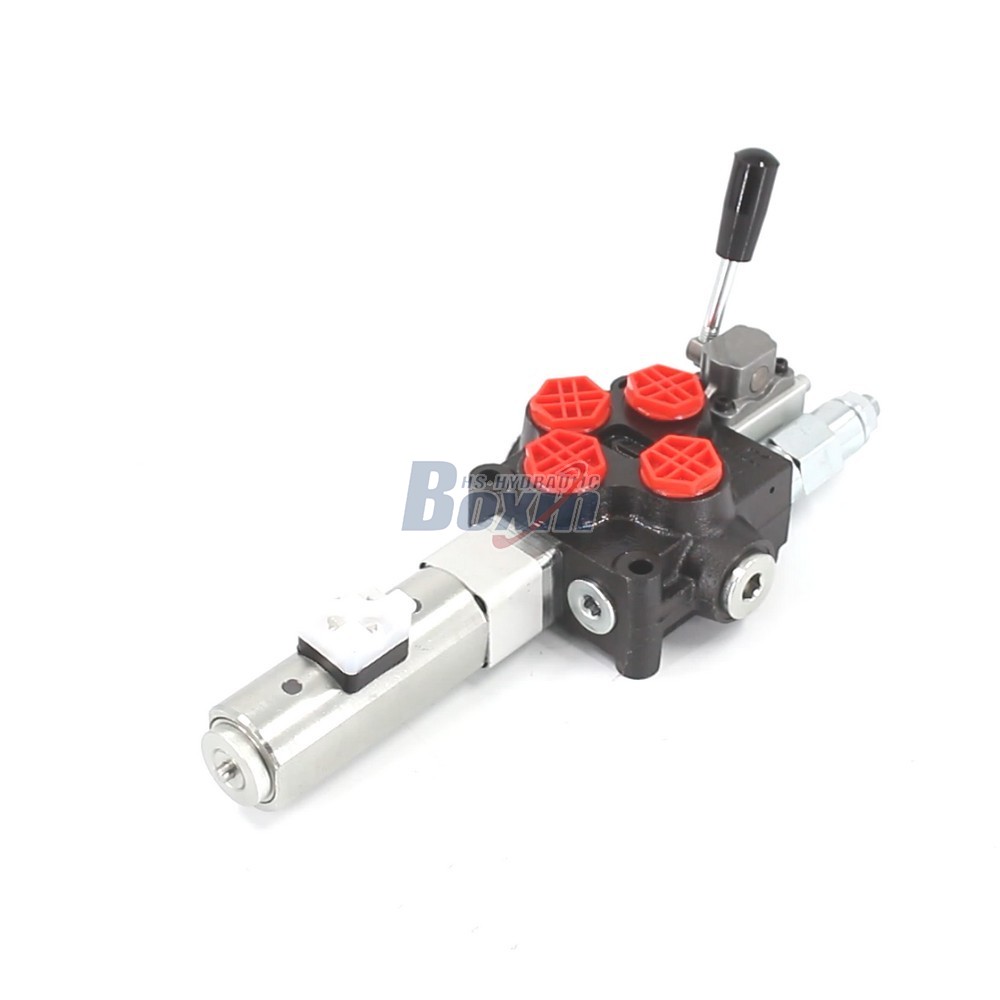

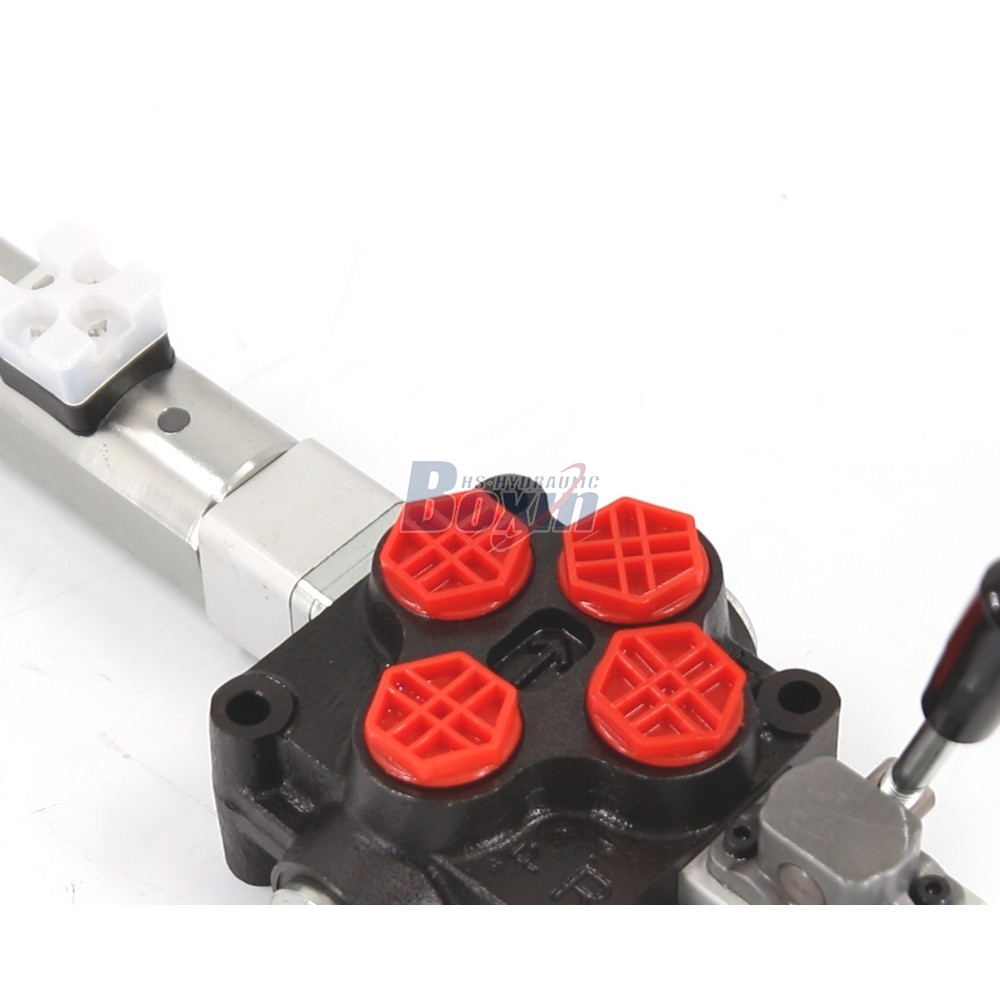

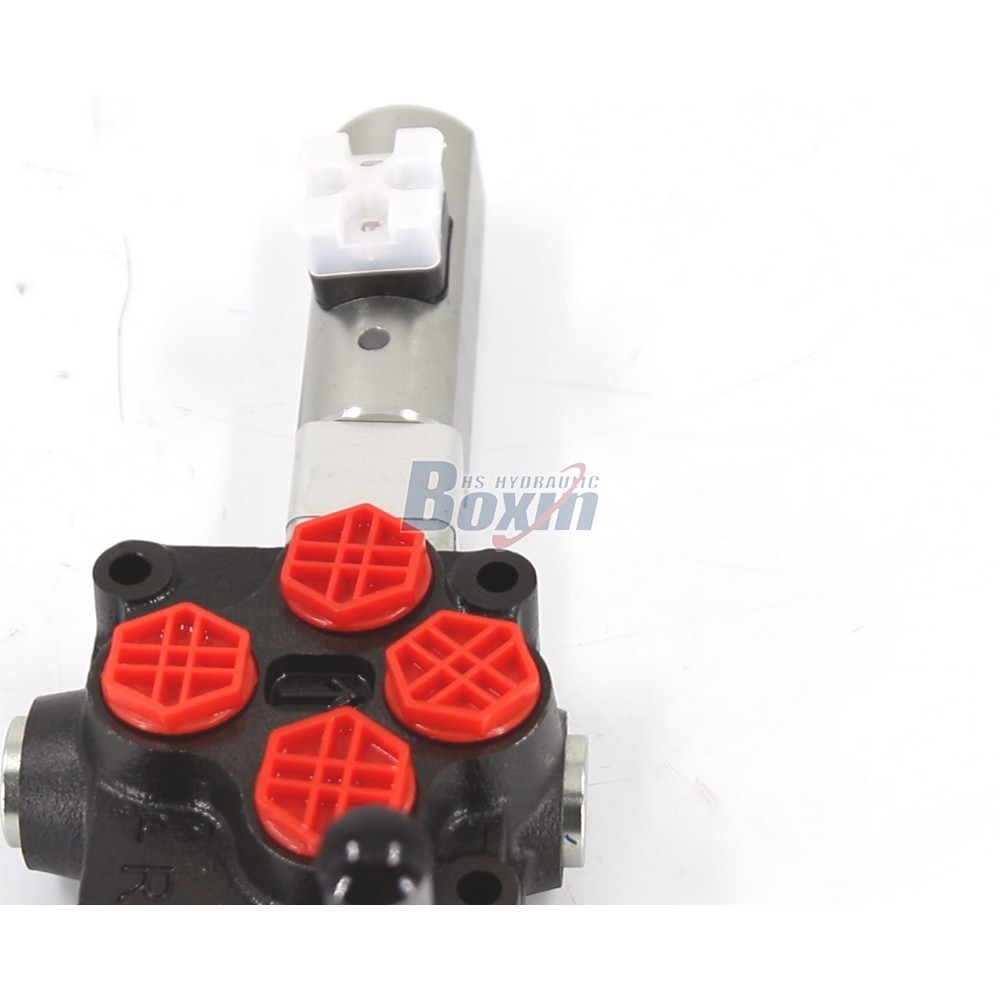

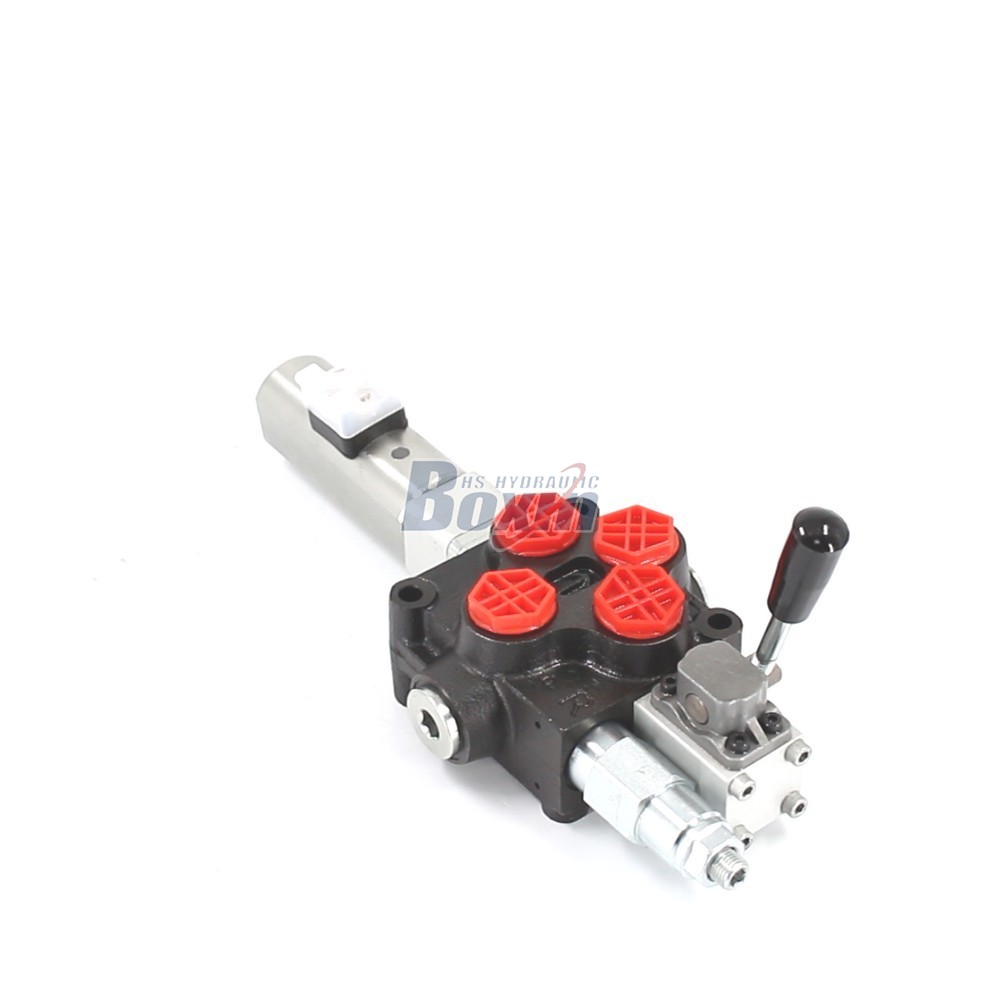

The Q45 Series is a versatile 1-spool monoblock directional control valve designed for hydraulic systems requiring dual solenoid and manual control. With a rated flow of 45 L/min and a maximum pressure rating of 315 bar, this high-performance valve is engineered for durability and precision across material handling, construction, and agricultural machinery.
| ซีรีส์ Q45 วาล์วควบคุมทิศทางแบบโมโนบล็อก พารามิเตอร์ | |
|---|---|
| วิธีการควบคุม | ด้วยตนเอง, ลม, ไฟฟ้าลม, ไฟฟ้าไฮดรอลิก, โซลินอยด์, จอยสติก, โซลินอยด์และแมนนวล, แม่เหล็กไฟฟ้าแบบแมนนวลและแบบผลัก-ดึง, แม่เหล็กไฟฟ้าแบบผลัก-ดึง |
| สปูล | 1 สปูล, 2 สปูล, 3 สปูล, 4 สปูล, 5 สปูล, 6 สปูล, 7 สปูล |
| ช่วงอุณหภูมิโดยรอบ | -20°C ถึง +80°C (-4°F ถึง +176°F) |
| ประเภทโครงสร้าง | วาล์วแบบโมโนบล็อก |
| ส่วน | 1 ส่วน, 2 ส่วน, 3 ส่วน, 4 ส่วน, 5 ส่วน, 6 ส่วน, 7 ส่วน |
| ช่วงความหนืดในการทำงาน | 15 - 75 มม²/วินาที (15 cSt ถึง 75 cSt) |
| อัตราการไหลที่กำหนด | 45 ลิตร/นาที (11.8 แกลลอนสหรัฐ/นาที) |
| แรงดันสูงสุด | 315 บาร์ (4,600 psi) |
| พอร์ตทางเข้า | ขนาด G1/2 |
| พอร์ตทางออก | ขนาด G1/2 |
| ขนาดพอร์ต | ขนาด G1/2 |
As a leading manufacturer of premium hydraulic components, we proudly present the Q45 Series Solenoid and Manual 1 Spool Monoblock Directional Valve. This robust valve offers exceptional control for various applications including forklifts, tractors, mini-excavators, and aerial platforms. Featuring G1/2 inlet and outlet ports, it supports a flow capacity of 45 L/min (11.8 US gpm) and operates effectively up to 315 bar (4600 psi). We provide comprehensive manufacturing services, including professional OEM and ODM solutions, private labeling (branding), and bespoke customization to meet specific technical requirements. Our factory is fully equipped for large-scale production, offering competitive wholesale pricing and reliable supply chains. We are actively seeking global partners, including distributors, wholesalers, regional agents, and international traders to expand our market reach. Whether you need a trusted factory supplier for bulk orders or a partner for specialized hydraulic valve development, our team provides the technical expertise and manufacturing excellence required for long-term success in the hydraulic industry.
