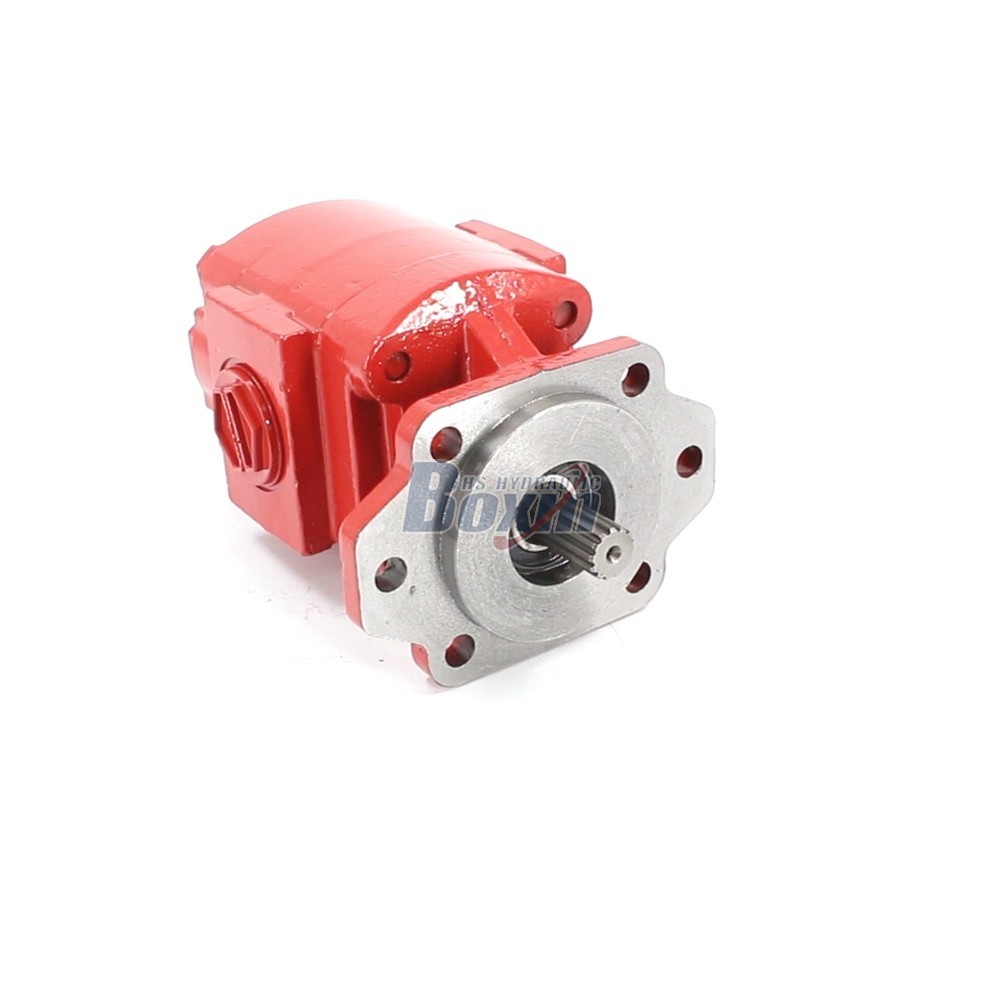

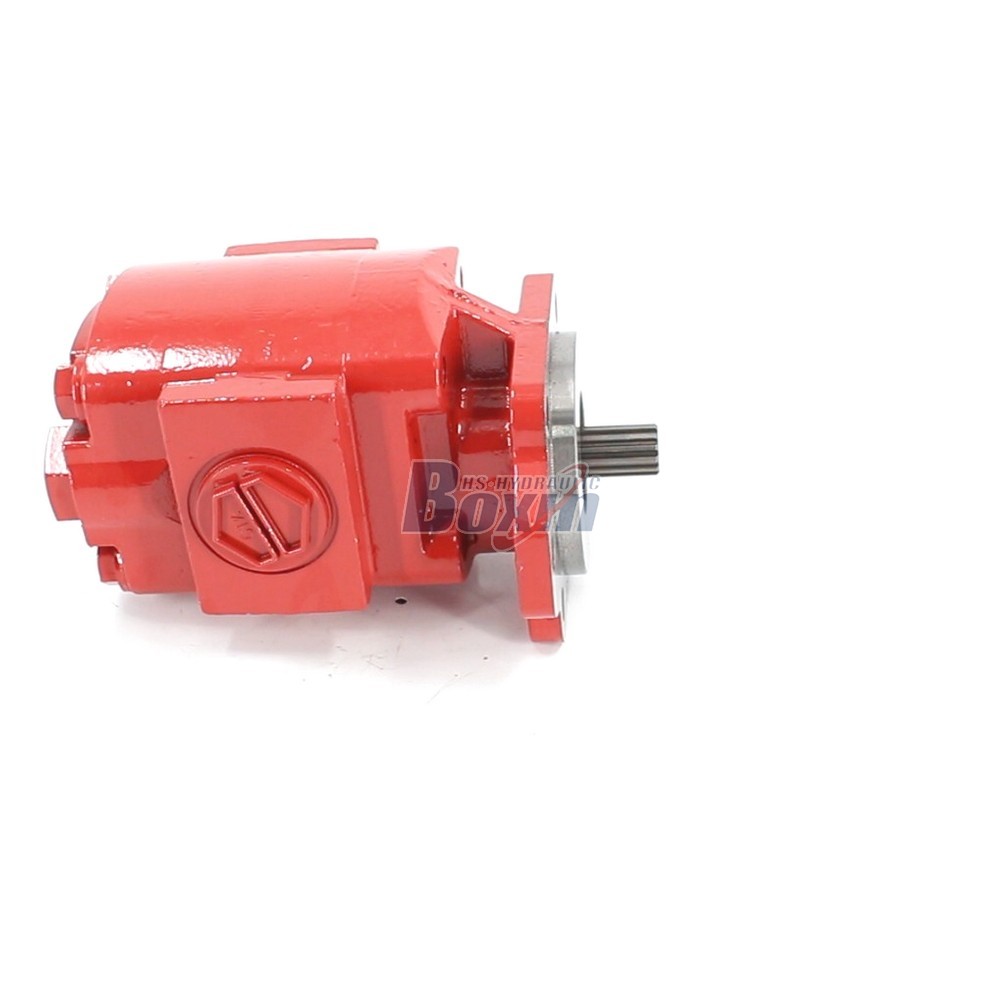

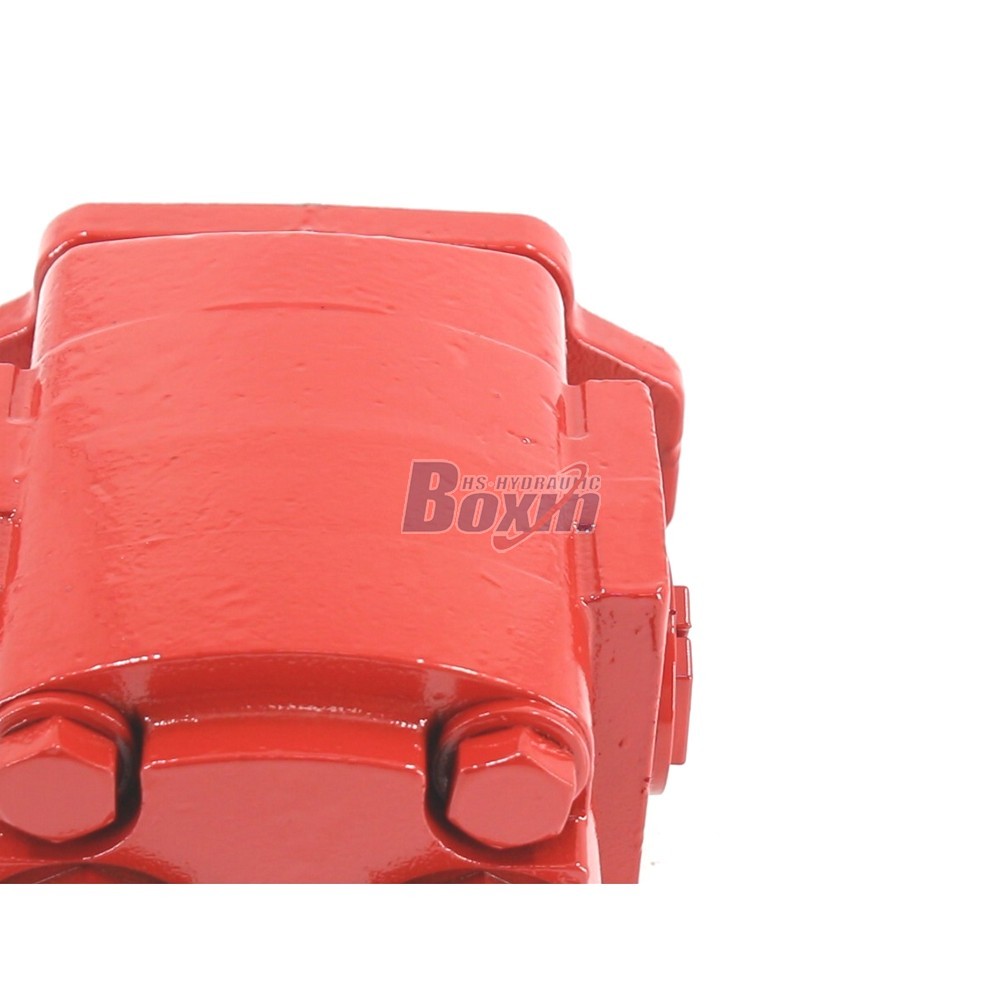

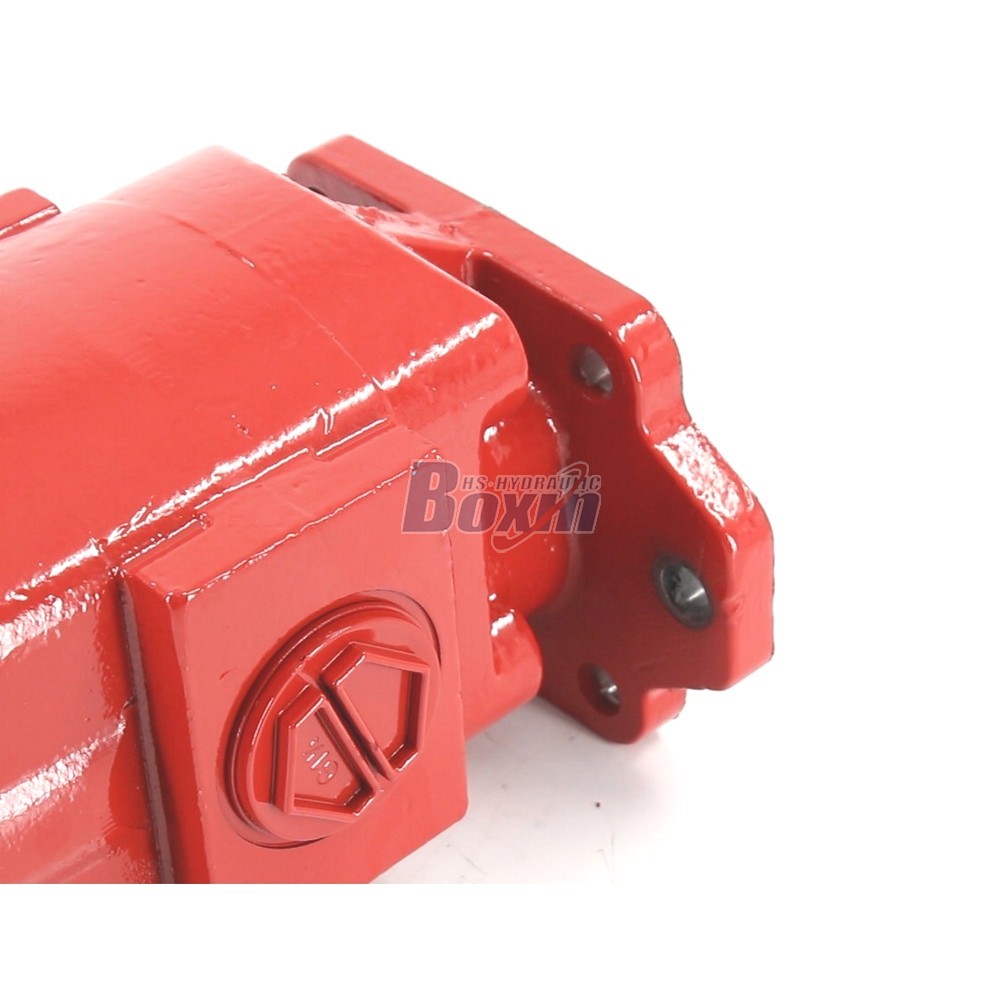

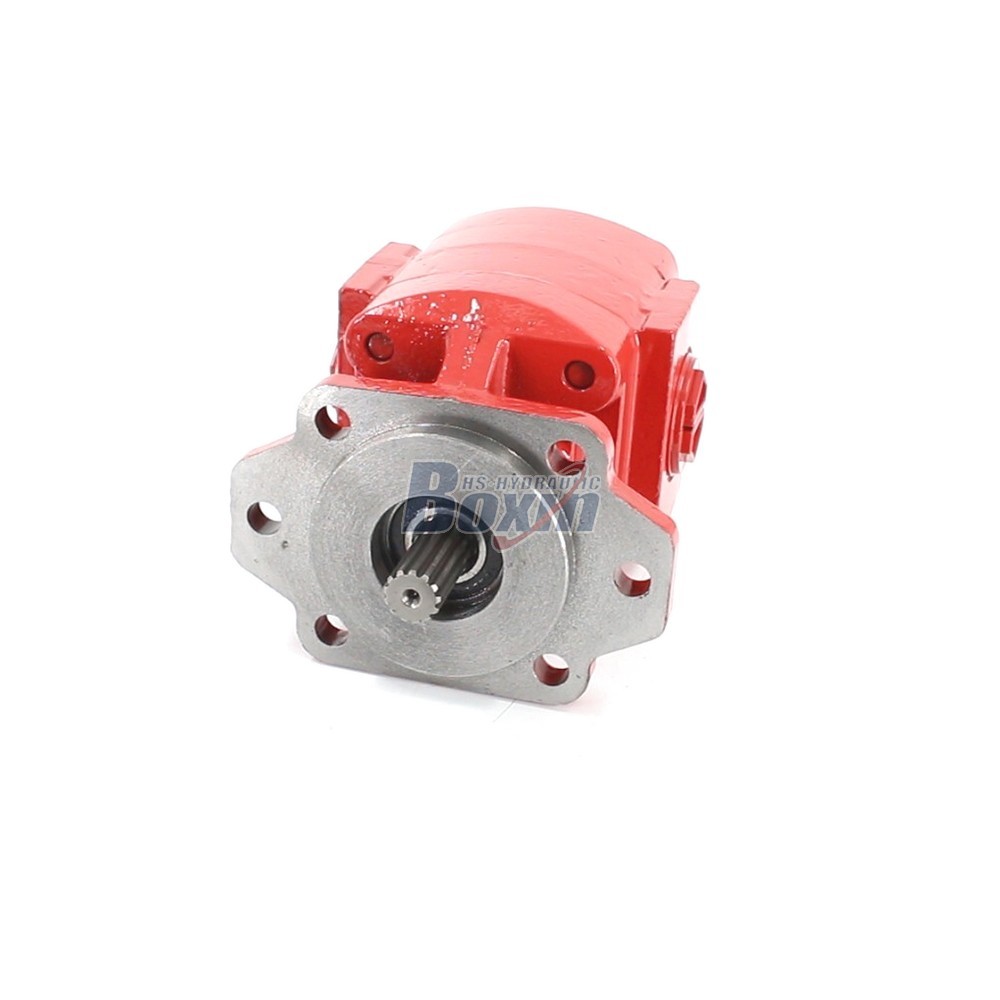

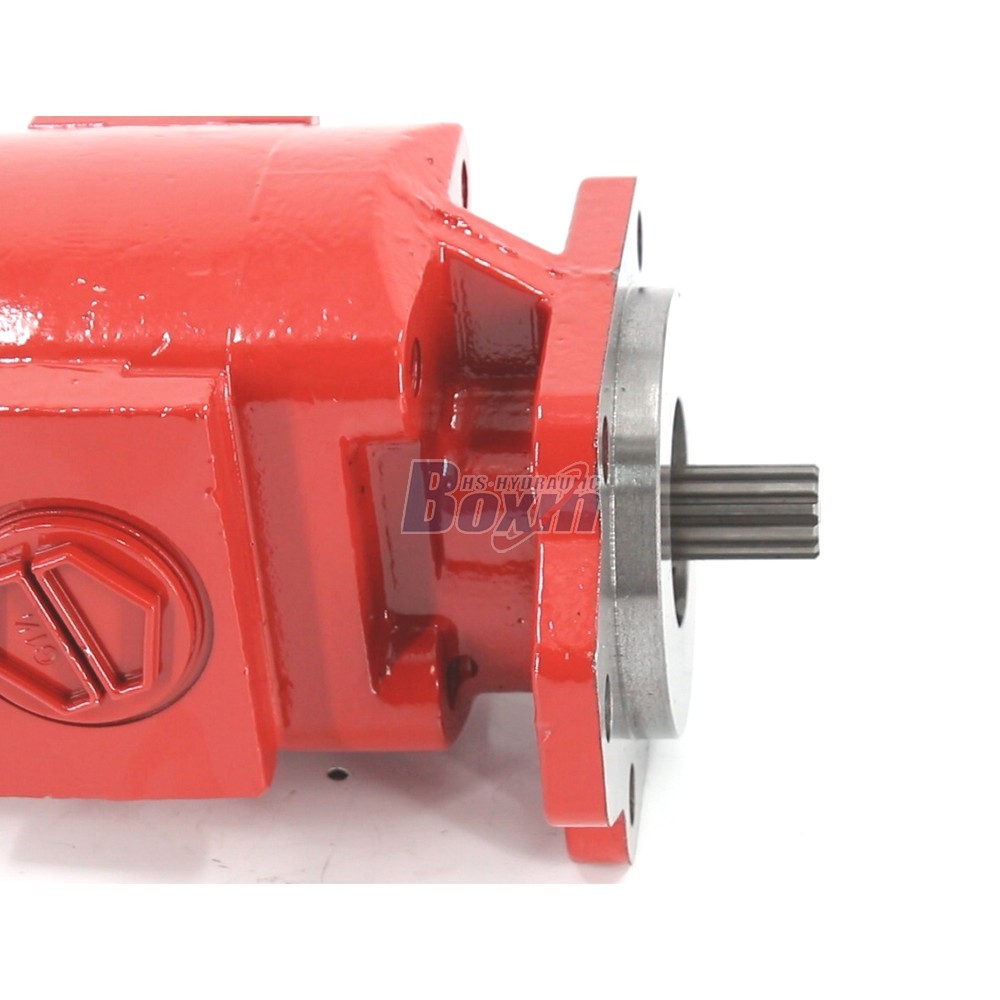

This P21 Series Hydraulic Gear Pump features a 64.6 cc/rev displacement, 16 MPa rated pressure, and bidirectional rotation, ideal for forklifts and loaders. Backed by a 25-year Professional Manufacturer with IATF 16949 certification, it ensures reliable performance for construction and agricultural machinery.
| ซีรีส์ P21 ปั๊มเฟืองไฮดรอลิก พารามิเตอร์ | |
|---|---|
| ปริมาตรกระจัด | 64.6 ซีซี/รอบ |
| แรงดันที่กำหนด | แรงดัน 16 MPa (2320 psi) |
| แรงดันสูงสุด | แรงดัน 17 MPa (2465 psi) |
| ความเร็วที่กำหนด | 600 รอบ/นาที |
| ความเร็วสูงสุด | ความเร็ว 2400 รอบต่อนาที |
| ทิศทางการหมุน | สองทิศทาง |
| วัสดุ | เหล็กหล่อ |
| โครงสร้าง | ปั๊มเกียร์ภายนอก |
| เวอร์ชันหน้าแปลน | หน้าแปลนรูปไข่, หน้าแปลนสี่เหลี่ยม, รูยึดตามมาตรฐาน ISO-4, รูยึดตามมาตรฐาน UNI-3, หน้าแปลน SAE |
| ประเภทเพลา | Involute Spline |
**1. Reliable P21 Series Gear Pump Specifications**
- Engineered with 64.6 cc/rev displacement and bidirectional rotation, operating efficiently at 2000 r/min rated speed.
- Delivers consistent flow up to 2200 r/min max speed, ensuring smooth power transmission for heavy-duty applications.
**2. High-Pressure Hydraulic Gear Pump Performance**
- Rated for 16 MPa (2320 psi) with a max pressure of 17 MPa (2465 psi), providing strong lifting force for material handling.
- Rigorously tested for seal integrity and pressure stability, guaranteeing durability in demanding earth-moving tasks.
**3. Versatile OEM Hydraulic Pump Applications**
- Perfectly compatible with forklifts, telehandlers, skid steer loaders, and backhoe loaders as a direct replacement part.
- Supports diverse industrial vehicles including tractors, sprayers, and waste compactors, offering broad market adaptability.
**4. Factory Direct Sales Quality Assurance**
- Produced by a 25-year Professional Manufacturer with 4 modern factories and an annual capacity of 1,500,000 units.
- Each unit undergoes 100% bench testing for pressure, flow, and leakage, backed by IATF 16949 and CE certifications.
**5. Customizable Wholesale China Factory Solutions**
- Offers full OEM/ODM services including custom logos, casting modifications, and private label packaging for distributors.
- Secured with rust-proof treatment and heavy-duty wooden crate packing, ensuring safe Exported Worldwide delivery.
