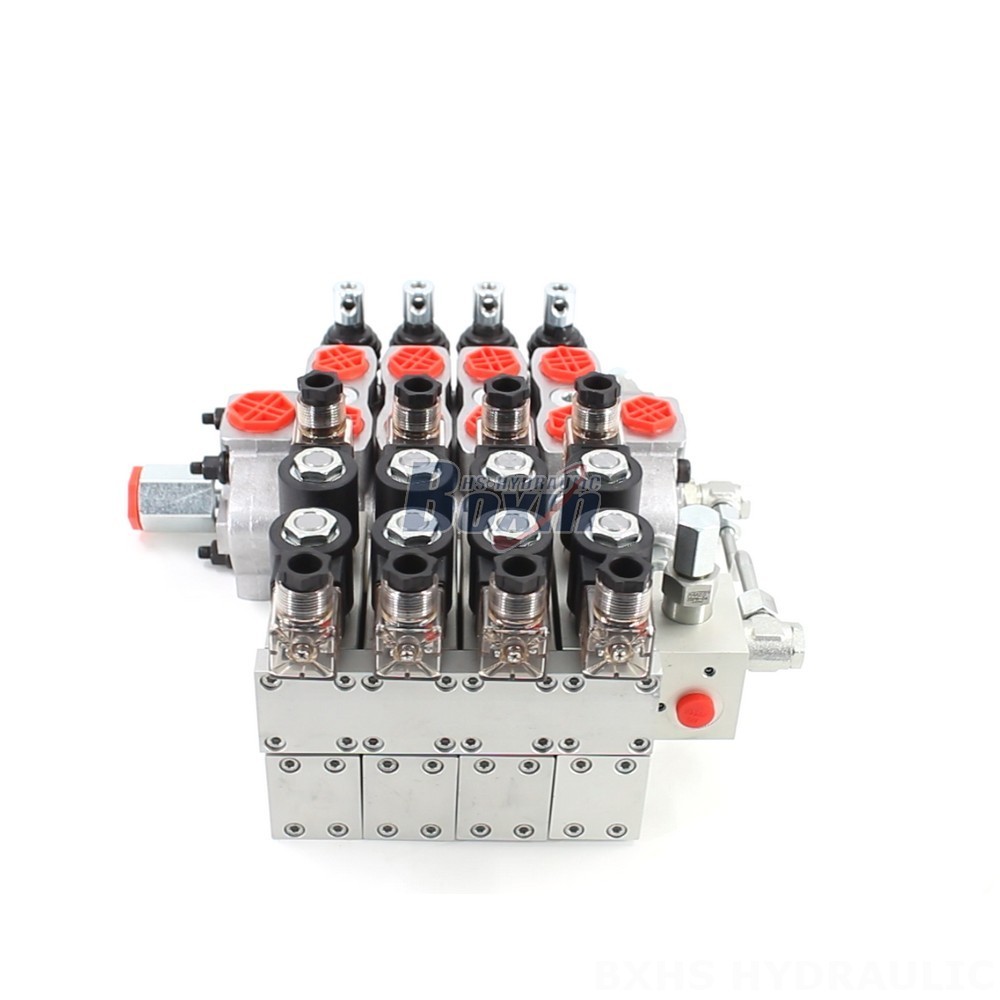

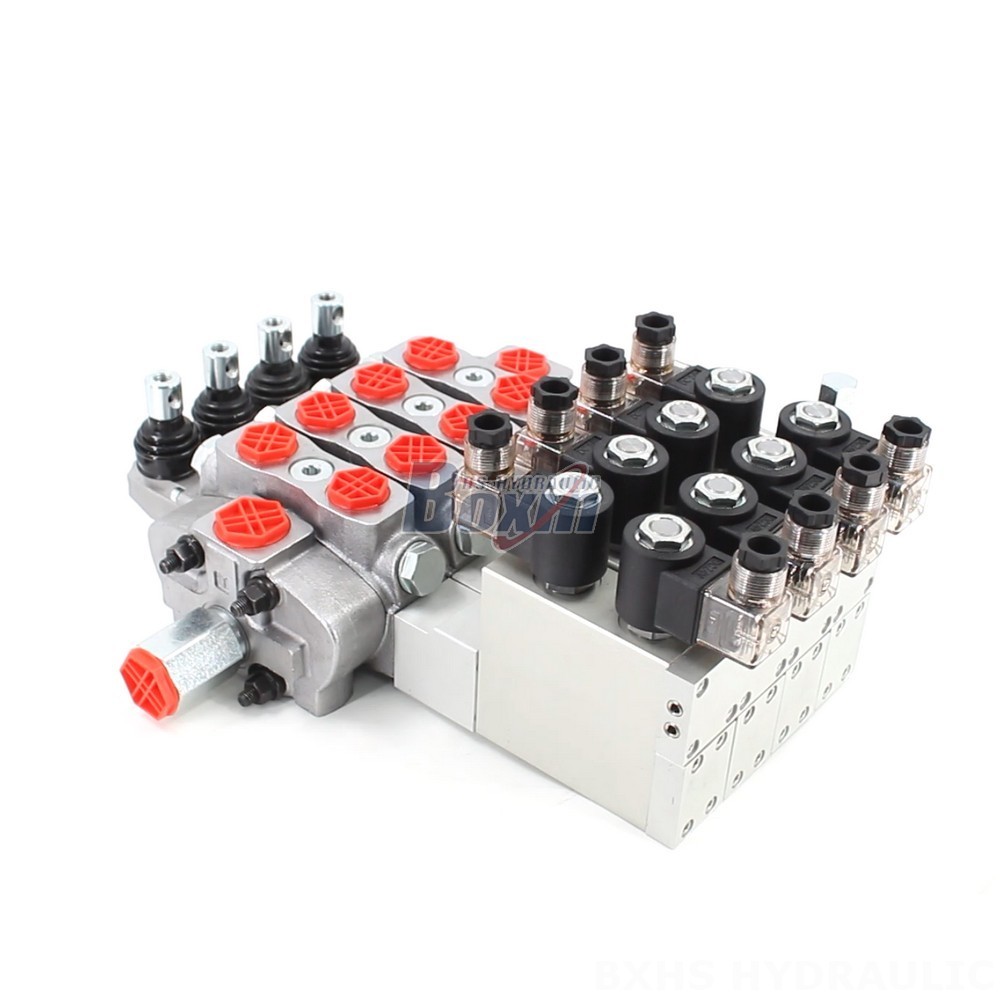

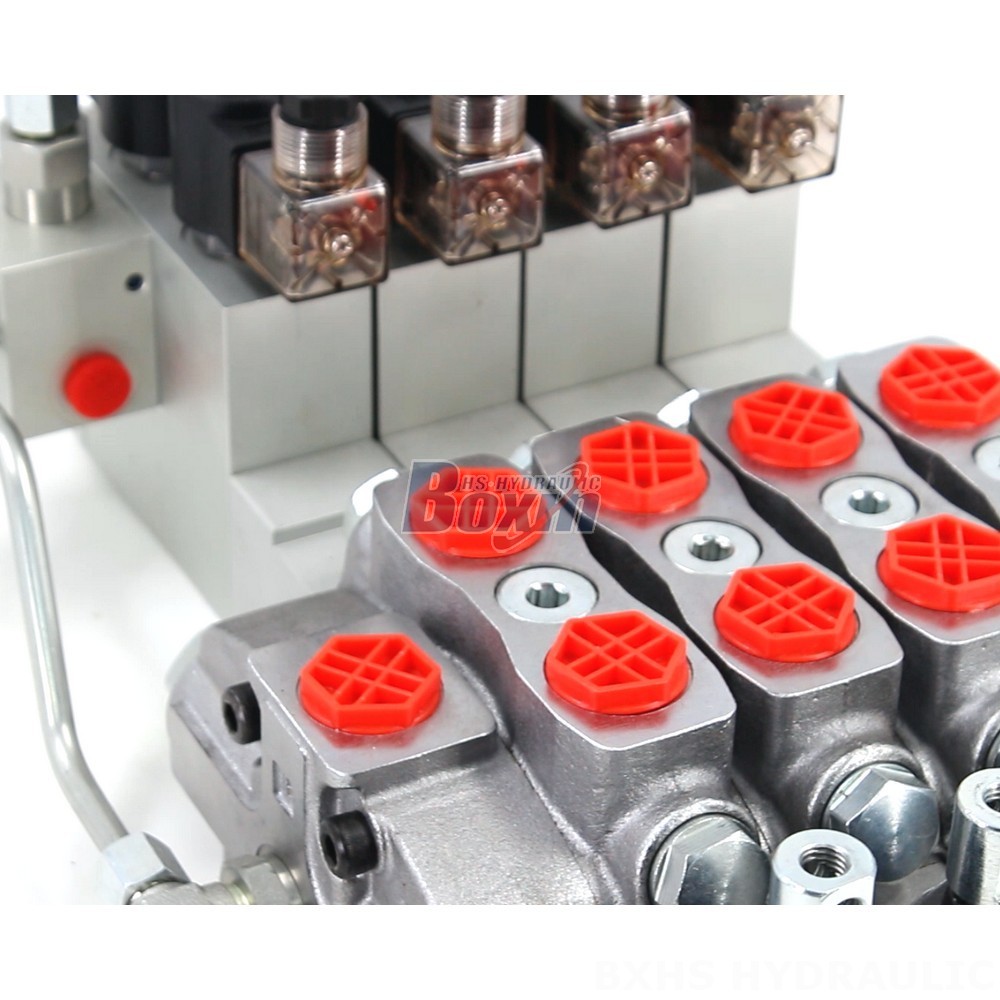

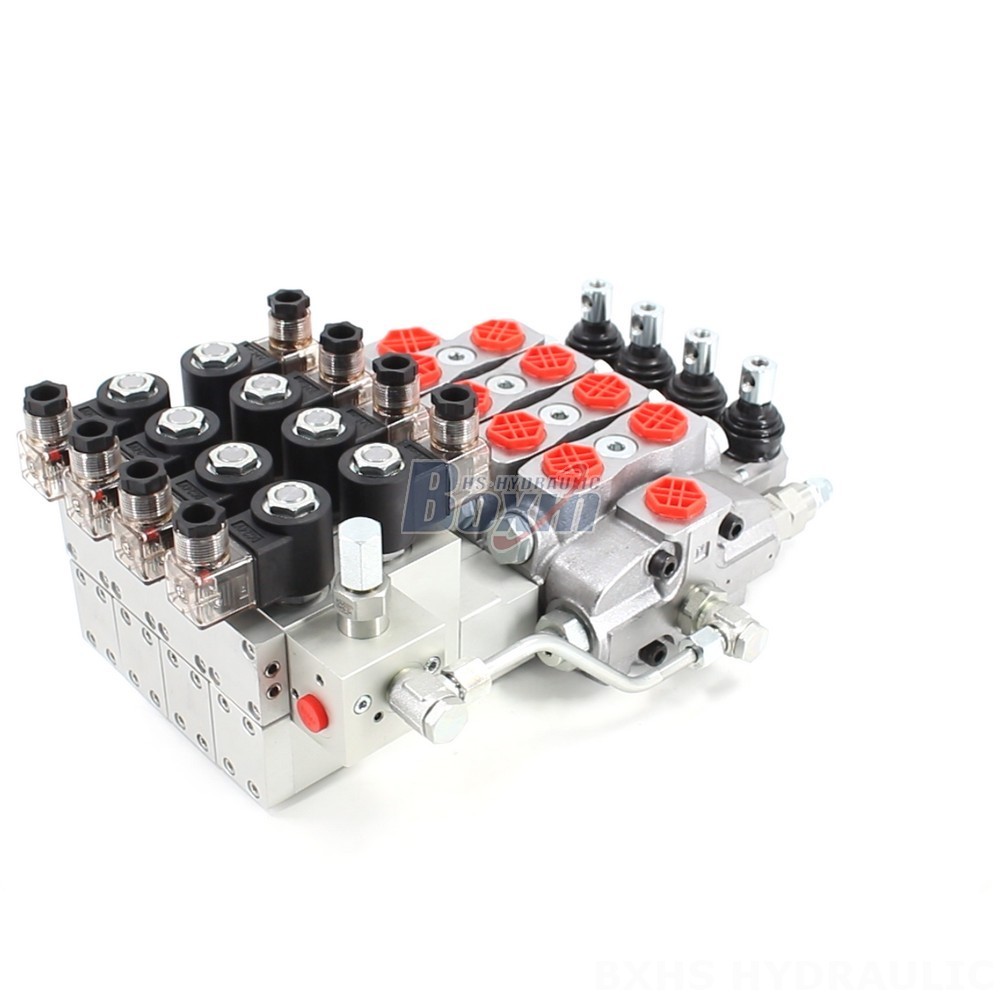

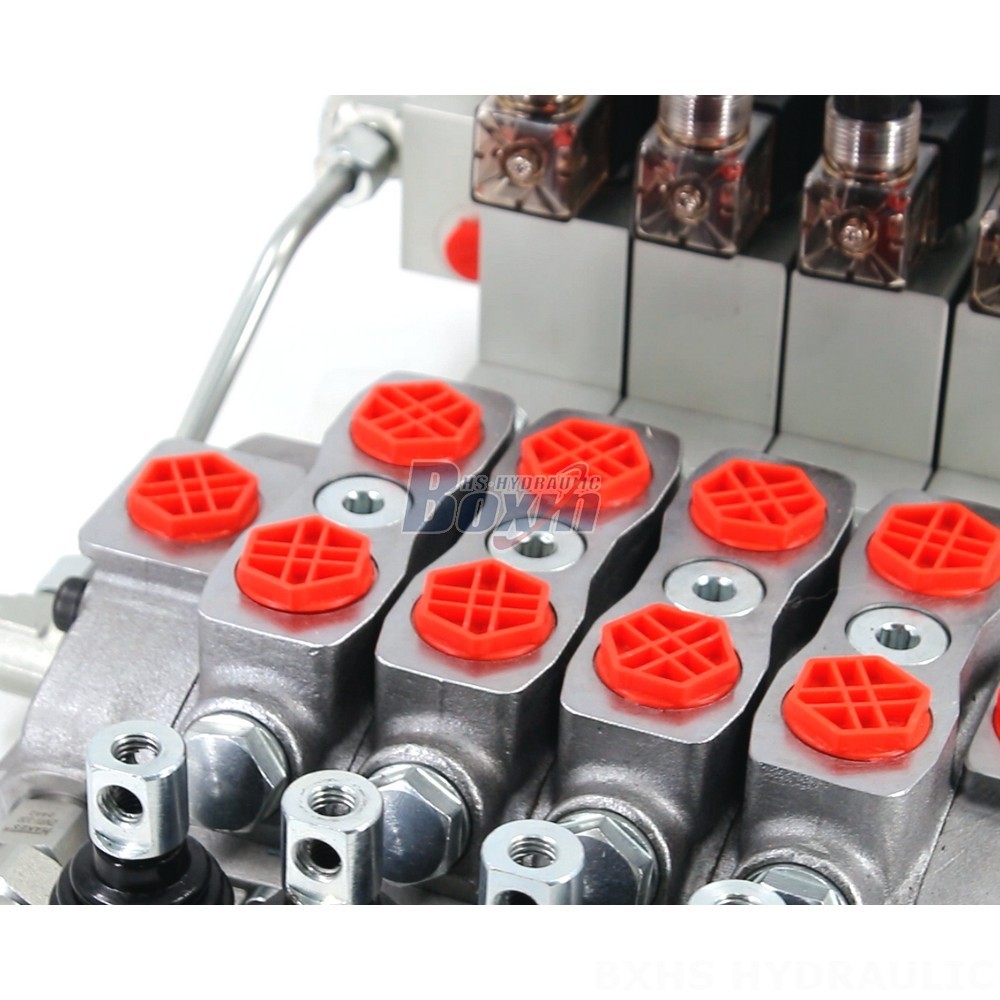

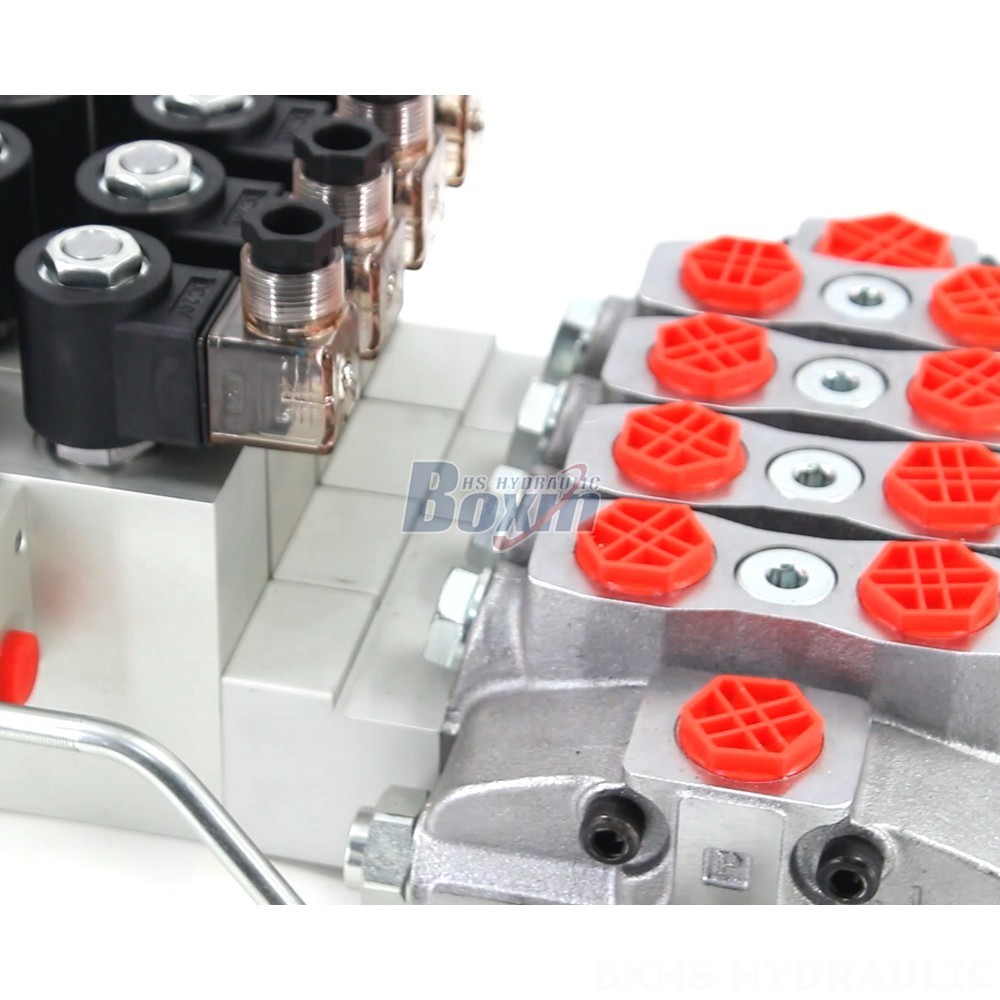

SD8-PG2 Electro-Hydraulic 4 Spool Sectional Directional Valve - Factory Direct

วิธีการควบคุม:ไฟฟ้าไฮดรอลิก

สปูล:4 สปูล

อัตราการไหลที่กำหนด:90 ลิตร/นาที (23.8 แกลลอนสหรัฐ/นาที)

แรงดันสูงสุด:315 บาร์ (4,600 psi)

พอร์ตทางเข้า:ขนาด G1/2

พอร์ตทางออก:ขนาด G3/4

ขนาดพอร์ต:ขนาด G1/2

แบรนด์:BXHS

ประเภทสินค้า:วาล์วทิศทางส่วน

ซีรี่ส์ผลิตภัณฑ์:ซีรีส์ SD8 วาล์วทิศทางส่วน

ขนาดบรรจุภัณฑ์:40*35*20

น้ำหนักรวม:28.00 kg

สถานะสินค้า: มีสินค้าในสต็อก

548 ผู้เข้าชมที่กำลังมองหาผลิตภัณฑ์นี้

SD8-PG2 Electro-Hydraulic 4 Spool Sectional Directional Valve - Factory Direct

SD8-PG2 Electro-Hydraulic 4 Spool Sectional Directional Valve - Factory Direct

SD8-PG2 Electro-Hydraulic 4 Spool Sectional Directional Valve - Factory Direct drawing image

High-quality SD8-PG2 electro-hydraulic 4-spool sectional directional valve, offering 90 L/min flow rate and 350 bar max pressure. Ideal for material handling, construction, and agricultural applications. Factory direct pricing and OEM/private label options available.

ซีรีส์ SD8 วาล์วทิศทางส่วน พารามิเตอร์
วิธีการควบคุม ด้วยตนเอง, ลม, ไฟฟ้าลม, ไฟฟ้าไฮดรอลิก, โซลินอยด์, ไฮดรอลิก, ไฮดรอลิกและแบบแมนนวล, สายเคเบิล, จอยสติก, โซลินอยด์และจอยสติก, ด้วยตนเองและจอยสติก, มอเตอร์ไฟฟ้า
สปูล 1 สปูล, 2 สปูล, 3 สปูล, 4 สปูล, 5 สปูล, 6 สปูล, 7 สปูล, 8 สปูล, 9 สปูล, 10 สปูล
ช่วงอุณหภูมิโดยรอบ -40°C ถึง +80°C (-40°F ถึง +176°F)
ประเภทโครงสร้าง วาล์วแบบแยกส่วน
ส่วน 1 ส่วน, 2 ส่วน, 3 ส่วน, 4 ส่วน, 5 ส่วน, 6 ส่วน, 7 ส่วน, 8 ส่วน, 9 ส่วน, 10 ส่วน
ช่วงความหนืดในการทำงาน 12 - 400 มม²/วินาที (12 cSt ถึง 400 cSt)
อัตราการไหลที่กำหนด 90 ลิตร/นาที (23.8 แกลลอนสหรัฐ/นาที)
แรงดันสูงสุด 315 บาร์ (4,600 psi)
พอร์ตทางเข้า ขนาด G1/2, ขนาด G3/4, ขนาด M22×1.5, ขนาด SAE 10
พอร์ตทางออก ขนาด G1/2, ขนาด G3/4, ขนาด M27×2.0, ขนาด SAE 10, ขนาด 3/4 NPT
ขนาดพอร์ต ขนาด G1/2, ขนาด M22×1.5, ขนาด SAE 10

The SD8-PG2 Electro-Hydraulic 4 Spool Sectional Directional Valve is a high-performance hydraulic component manufactured by our factory. We offer factory direct pricing, ensuring competitive advantage for our customers. This robust valve boasts a rated flow of 90 L/min (23.8 US gpm) and a maximum pressure of 350 bar (5100 psi) or 250 bar (3600 psi), making it suitable for a wide range of applications, including material handling, construction and earth moving, industrial vehicles, and agriculture. Specific applications include forklifts, telehandlers, skid steer loaders, compact wheel loaders, tractors, backhoe loaders, mini-excavators, midi-excavators, harvesters, and balers. This 4-section, electro-hydraulic sectional valve operates reliably within a temperature range of -40°C to +80°C (-40°F to +176°F) and a viscosity range of 12 - 400 mm²/s (12 cSt to 400 cSt).

**We are a leading hydraulic product manufacturer offering:**
* **Manufacturing:** High-quality production of the SD8-PG2 and other hydraulic valves.
* **OEM (Original Equipment Manufacturing):** We provide custom designs and manufacturing to meet your specific requirements. Partner with us to integrate our valves seamlessly into your equipment.
* **Private Labeling:** Brand your own hydraulic valves with your company logo and specifications.
* **Customization:** Tailor the valve's specifications to match your unique application needs.
* **Wholesale:** Bulk orders available at competitive factory-direct prices.

**We are actively seeking:**
* Distributors
* Wholesalers
* Agents
* Trading Companies

Partner with us to access high-quality, reliable hydraulic valves at competitive prices. Contact us today to discuss your needs and explore potential collaborations. We are a factory direct supplier offering competitive pricing, high-quality products, and flexible OEM and private labeling options. Choose a reliable and experienced hydraulic valve manufacturer – choose us.
